Product Details:
|
| Product Name: | Stainless Steel Wire Roll Mesh Welding Machine | Mesh Width: | 5 Feet |
|---|---|---|---|
| Wire Diameter: | 0.45-2.6 Mm | Mesh Size: | 1/2x1/2" |
| Warranty: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor |
| Key Selling Points: | Long Service Life, Easy To Operate | Mesh Roll Length: | About 100m |
| Usage: | Produce Wire Mesh | Power: | 5kw,10kw |
| High Light: | 5ft Roll Mesh Welding Machine,synchronous Roll Mesh Welding Machine,petroleum weld mesh making machine |
||
1. Product description

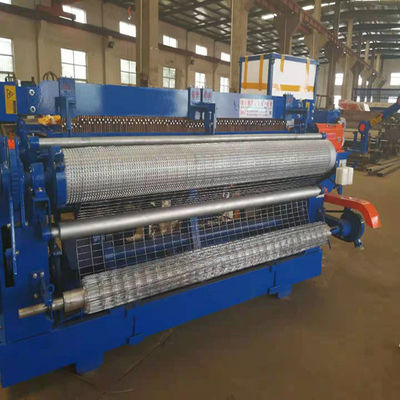

Automatic five feet width roll mesh welding machine is used for making wire mesh. The machine adopts synchronous control technique, welding time and sub-control welding is composed of PLC program system. Touch screen input panel forms make operation more intellectualized and reasonable. New and high efficiency of welding machine transformer expands welding wire diameter scope. Easy handling and high flexibility and high working efficiency achieve a perfect welded wire mesh machine.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 5 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 5 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 5 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 5 feet | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 5 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The stainless steel wire roll mesh welding machine can be widely used in mining, petroleum, chemistry, food, medicine, machine manufacturing industry. It is used for machine protection for the above industries. The stainless steel wire mesh is even and constant. Welding spot is sturdy. The machinery property is stable, anti-corrosion perfomance is good.
4. Advantages
a. We can provide online after-sales service is available.
b. 90% welded mesh practitioners are aware of Huayang, and at oversea, Huayang represents highest level of quality and technology in the industry.
c. Our machine can automatically dischare wire mesh.
d. To strengthen easy operation of machine,we use proximity switch between upper and lower welding heads,when cross wire doesn't reach,the machine will stop automatically.
e. Electrode lift system to extend electrode life.
