Product Details:
|
| Product Name: | Automatic One Meter Width Wire Mesh Welding Machine | Wire Diameter: | 0.45-2.6 Mm |
|---|---|---|---|
| Warranty: | 1 Year | Voltage: | 380V/50HZ |
| Speed: | 110 Rows/min | Usage: | Produce Wire Mesh |
| Electrodes: | Single Or Double Row | Condition: | New |
| Rated Capacity: | 100KVA*8 | Type: | Semi-auto |
| High Light: | 1m Width Weld Mesh Manufacturing Machine,double row electrodes Weld Mesh Manufacturing Machine,110mm Length Iron Wire Making Machine |
||
1. Product description

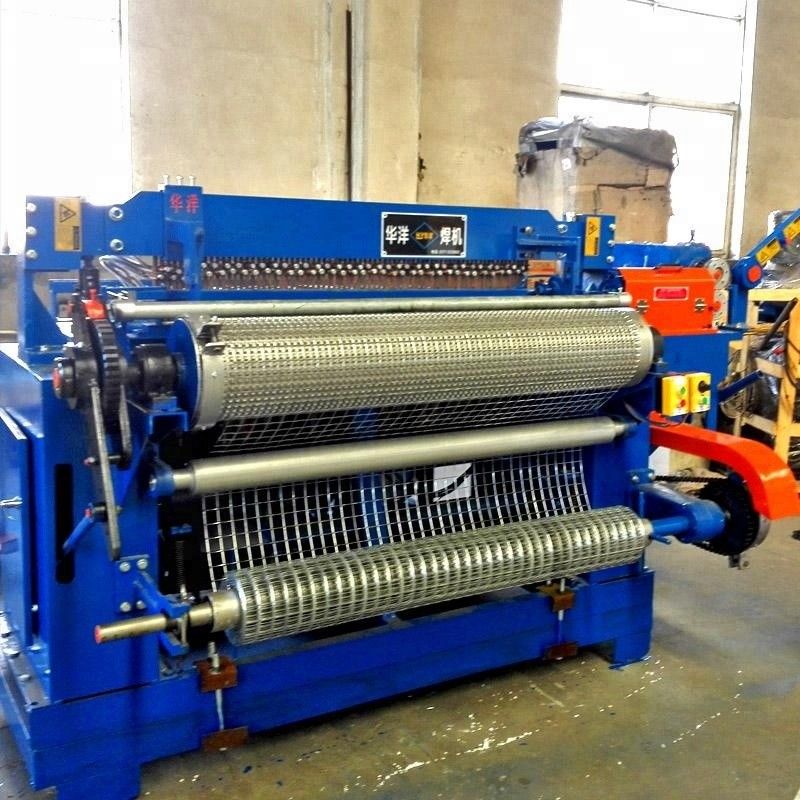

Automatic one meter width wire mesh welding machine is used for making wire mesh. With our mesh welding plants you have the option of welding tailor-made bespoke mesh from coil. The mesh welding plants' strengths lie in their versatility and in the infinite number of possibilities for adapting them to the needs of the individual customer. Production of tailor-made mesh, Increased cost-effectiveness and reduced staffing requirements. Compact, requires little space.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1m | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic one meter width wire mesh welding machine is suitable for interior decoration, arts and crafts, anticorrosion, poultry breeding and other industries. Welded wire mesh machine, also named electric welded mesh machine, roll mesh welding machine, is widely used to make wall mesh, concrete mesh, construction mesh, breed cage etc.
4. Advantages
a. This machine is fully automatic to feed wires, weld mesh, cut edge and roll mesh.
b. Welding using a new type of high efficient welding net transformer.
c. We are the birthplace of wire mesh welding machine, representing the state of art technology,and is the first to use variable-frequency drive control.
d. Server motor solves the problem of one net plate with different mesh size, and the system adopts PLC control.
e. High quality constant customer resources from home and abroad, with good reputation.
