Product Details:
|
| Product Name: | Automatic Five Feet Width Wire Mesh Welding Machine | Warranty: | 1 Year |
|---|---|---|---|
| Speed: | 90 Rows/min | Mesh Roll Length: | About 100m |
| Usage: | Produce Wire Mesh | Electrodes: | Single Or Double Row |
| Aperture/pitch: | 1", 2", 3", 4" 25, 50, 75, 100mm | Certification: | CE |
| Core Components: | Engine, Gearbox, Motor, Gear | Advantage: | High Welding Speed |
| High Light: | 5ft Wire Mesh Welding Machine,single row Electrodes Wire Mesh Welding Machine,90 rows/min stainless steel welding equipment |
||
1. Product description

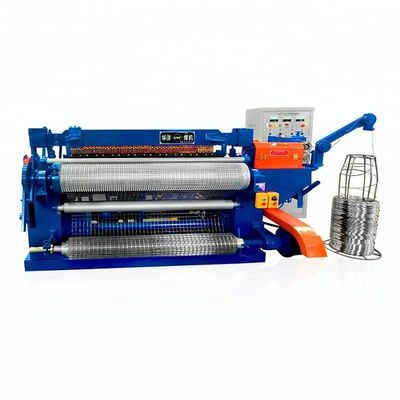

Automatic five feet width wire mesh welding machine is used for making wire mesh. Dedicated cutter is severing the ready mesh at the programmed size.Ready mesh is coiled on the dedicated rolling device at the programmed length!Managing of the mesh and the evacuation of the roll can be completely automatic!
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 5 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 5 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 5 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 5 feet | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 5 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic five feet width wire mesh welding machine is used to make rolled mesh. The automatic five feet width wire mesh welding machine are used for the production of dimensionally accurate meshwork for a wide variety of applications. Wire mesh may be used to produce shop, exhibition- and warehouse equipment as well as trays for domestic and overseas appliances.
4. Advantages
a. We can provide detailed installation videos, manuals, electrical schemes, layouts to help your machine installation.
b. Increased cost-effectiveness and reduced staffing requirements.
c. Design flexibility for the plant.
d.Compact, requires little space.
e. Both longitude wire and weft wire can be fed from wire coils automatically.
