Product Details:
|
| Product Name: | Stainless Steel Wire Fence Mesh Welding Machine | Brand Name: | Huayang |
|---|---|---|---|
| Speed: | 100 Rows/min | Applicable Industries: | Manufacturing Plant, Construction Works |
| Machinery Test Report: | Provided | Weight: | 2-5T |
| Control System: | PLC Touch Screen | Color: | Blue, Green, Orange Or Per Request |
| Key Selling Points: | Long Service Life, Easy To Operate | Minimum Mesh Size: | 12.7mm |
| High Light: | BI Wire Chicken Mesh Making Machine,Dia 1.3mm Chicken Mesh Making Machine,stockade stainless steel welding equipment |
||
1. Product description

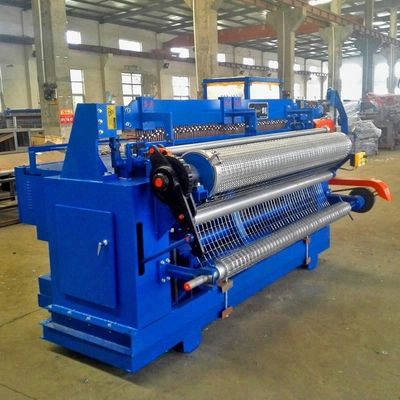

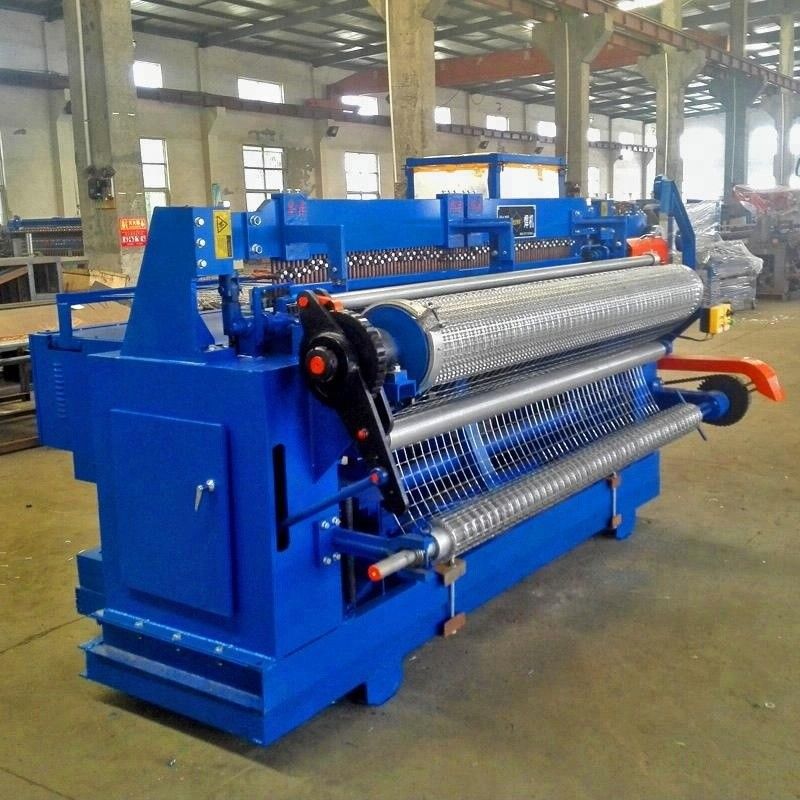

Stainless steel wire fence mesh welding machine is used for making wire mesh. You can use Steel wire coils of drawn wire or wire rod as a continous wire input system for the length wires. Fort he Cross wires you may need a wire straightening & cutting machine which we also provide. You can also adjust the welding electrodes (welding pins) in order to produce different mesh holes.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The stainless steel wire fence mesh welding machine is used for roll mesh welding line. The welded wire mesh panels are highly demanded and consumed in construction, either for concrete reinforcement or panels in walls, floors, roofs and other applications in constructions and building.
4. Advantages
a. Raw materials can be galvanized wire, black wire and stainless steel wire.
b. 90% welded mesh practitioners are aware of Huayang, and at oversea, Huayang represents highest level of quality and technology in the industry.
c. We use variable frequency from Schneider Siemens to control motor for easy maintenance.
d. To strengthen easy operation of machine,we use proximity switch between upper and lower welding heads,when cross wire doesn't reach,the machine will stop automatically.
e. Spooling machine, repair table, we use good material to guarantee it is sturdy and stable, easy to operate.
