Product Details:
|
| Product Name: | Automatic Six Feet Width Fence Mesh Welding Machine | Warranty: | 1 Year |
|---|---|---|---|
| Usage: | Produce Wire Mesh | Electrodes: | Single Or Double Row |
| Power: | 5kw | Voltage: | 220V/380V/415V/440V |
| Mesh Shape: | Square | Life Time: | More Than 10 Years |
| Mechanical Specifications: | According To Customer Requirement | Trademark: | Huayang |
| High Light: | 6 feet Width Fence Mesh Welding Machine,Single Electrodes Fence Mesh Welding Machine,80mm Length Square mesh welder |
||
1. Product description

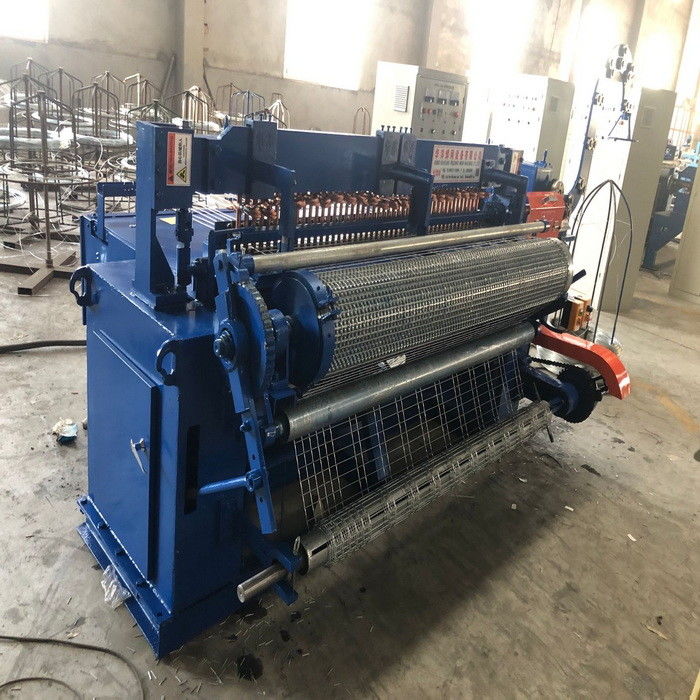

Automatic six feet width fence mesh welding machine is used for making wire mesh. At the same time, the machine is also equipped with automatic cutting mesh machine, when the machine finishes the mesh length according to the setting parameters, the mesh will be cut by the cutting mesh machine automatically.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 6feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6feet | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic six feet width fence mesh welding machine is is widely used for industry, agriculture, aquaculture, construction, transportation, mining, etc. Such as machine protective cover, animal livestock fence, garden fence, fence, protective window, channel poultry cages, egg baskets and office food baskets, basket and decoration.
4. Advantages
a. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.
b.Server motor solves the problem of one net plate with different mesh size, and the system adopts PLC control.
c. We can provide online after-sales service is available.
d. Good quality and famous brand motor and gearbox, equipped with inverter.
e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most suitable machine.
