Product Details:
|
| Product Name: | Blue Galvanized Wire Roll Drive Shaft Welding Machine | Voltage: | 410V/50HZ |
|---|---|---|---|
| Speed: | 90 Rows/min | Certification: | CE |
| Raw Material: | Galvanized Wire, Black Wire,stainless Steel Wire | Control System: | PLC Touch Screen |
| Usage: | Welding Steel Mesh | Warranty: | 12 Months After Installation |
| Current: | Alternating Current | Port: | Tianjin, China |
| High Light: | PLC Touch Screen Mesh Manufacturing Machine,AC BI Welded Wire Mesh Machine,Aquaculture Welded Wire Mesh Machine |
||
1. Product description

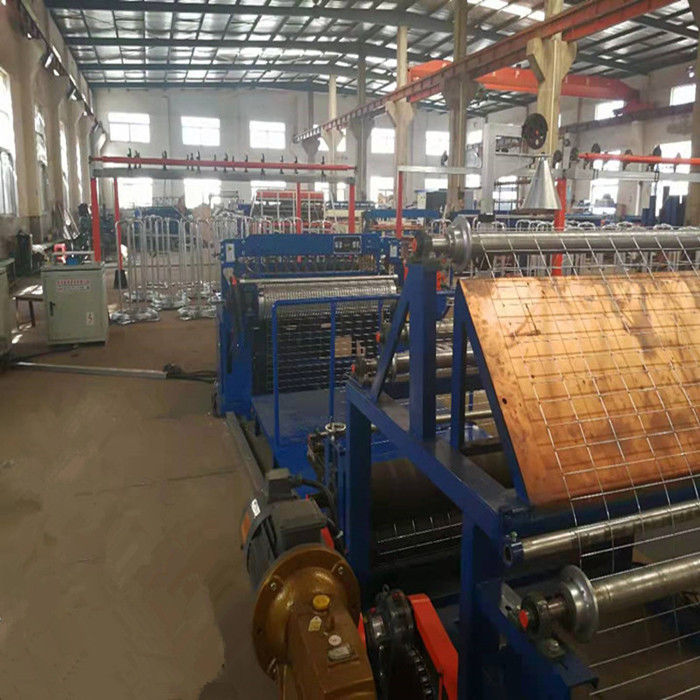

The blue galvanized wire roll drive shaft welding machine is used for making wire mesh. Both line wire coils and cross wire coils are fed automatically,the raw material is applicable for common low carbon steel wires or galvanized wires.This machine has the advantages such as reasonable structure design,low noise,working stably,easy to operate and so on.The mesh size is rather precise,the width and length for welded mesh can be set according to the practical needs.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW2 | 2m | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW2 | 2m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW2 | 2m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW2 | 2m | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW2 | 2m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW2 | 2m | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW2 | 2m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The blue galvanized wire roll drive shaft welding machine can be widely used in algriculture. The blue galvanized wire roll drive shaft welding machine is widely used for industry, agriculture, aquaculture, construction, transportation, mining, etc. Such as machine protective cover, animal livestock fence, garden fence, fence, protective window, channel poultry cages, egg baskets and office food baskets, basket and decoration.
4. Advantages
a. The welding time and welding current can be adjusted on the control panel to guarantee solid welding.
b. Upgrade of other components available at any time
c. Only need one worker to operate this machine.
d. We are the birthplace of wire mesh welding machine, representing the state of art technology,and is the first to use variable-frequency drive control.
e. Mesh pulling system adopts servo motor back and forward to ensure the mesh opening accurately and can be adjusted freely within a certain range.
