120times/Min Straightening Weld Mesh Manufacturing Machine 10kw

120times/Min Straightening Weld Mesh Manufacturing Machine 10kw
120times/Min Straightening Weld Mesh Manufacturing Machine 10kw

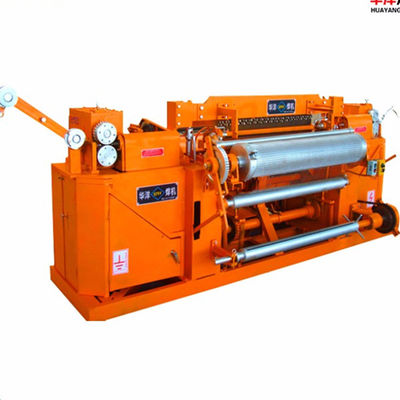

Large Image :  120times/Min Straightening Weld Mesh Manufacturing Machine 10kw

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

120times/Min Straightening Weld Mesh Manufacturing Machine 10kw

Description
Product Name: Galvanized Wire Orange Roll Drive Shaft Welding Machine Usage: Produce Wire Mesh
Hole Size: 1''-4''(mm) Welding Speed: 80-120times/min
Weight: 4 T Voltage: 220V/380V/415V/440V
Mesh Roll Length: About 100m Electrodes: Single Or Double Row
Power: 5kw,10kw Rated Capacity: 120kva
High Light:

120times/min Weld Mesh Manufacturing Machine

,

straightening Weld Mesh Manufacturing Machine

,

10kw roll welding machine

Galvanized Wire Orange Weld Mesh Manufacturing Machine

1. Product description



Galvanized wire orange weld mesh manufacturing machine is used for making wire mesh. You can use Steel wire coils of drawn wire or wire rod as a continous wire input system for the length wires. Fort he Cross wires you may need a Wire straightening & Cutting Machine which we also provide. You can also adjust the welding electrodes (welding pins) in order to produce different mesh holes.



2. Technical parameter



Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 2m 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 2m 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 2m 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 2m 1x1 0.8-1.6

90-110

100 1x2, 2x1, 2x2, 2x4
R- DHW 2m 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4



3. Application area



The galvanized wire orange weld mesh manufacturing machine is used in n algriculture. The machine produce the wire mesh. The people can use the wire mesh to make animal cages. Such as: chicken cage, dog cage, rabbit cage, etc. It is easy operation and economical.



4. Advantages



a. We are the birthplace of wire mesh welding machine, representing the state of art technology,and is the first to use variable-frequency drive control.



b. 90% welded mesh practitioners are aware of Huayang, and at oversea, Huayang represents highest level of quality and technology in the industry.



c. The electric current, line and weft opening are adjustable.



d. We are equipped with large production assembly line, annual production capacity is 500sets.



e. High stability ,low noise, automatically straightening, automatically feeding wire.
