Product Details:
|
| Product Name: | PLC Control Automatic Weld Mesh Manufacturing Machine | Machine Type: | Roll Forming Machine |
|---|---|---|---|
| Transformer: | Water-cooling Transformer | Place Of Origin: | Hebei Province, Huanghua City |
| Weight: | 2T, 2.5T, 3T, 3.5T | Automatic Grade: | Automatic |
| Power(w): | According To The Width | Key Selling Points: | Patented Product |
| Advantage: | High Welding Speed | Service: | Wholelife Technical Support |
| High Light: | PLC Manipulate Wire Net Making Machine,Husbandry Automatic Welding Machine,Commissioning Automatic Welding Machine |
||
1. Product description

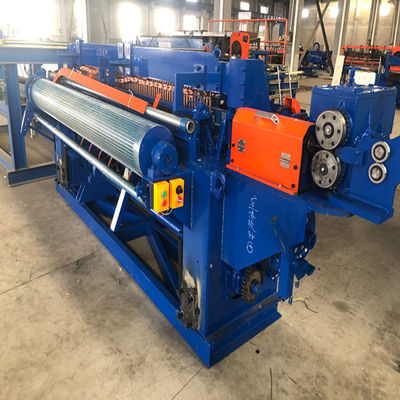

The PLC control automatic weld mesh manufacturing machine is used for making mesh. Commissioning the machine in the factory and assembled complete assurance can be used immediately after purchase, no longer to assemble,complete accessories. Easy to operate, only one person can operate, lower labor costs.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The PLC control automatic weld mesh manufacturing machine is used to construction, hollow wall reinforcement, increased elasticity, prevent cracks in the wall, it is a good building materials. Is used for the foundation, wall, etc. have a place of strength and stability as well as local high local stress requirements at each of the key used in the reinforcement of brick and block construction of cement mortar, so that brick-and-mortar form an integral whole structure, the maximum stress and shock absorption, excellent shock cracking, good building materials.
4. Advantages
a. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.
b. High speed mesh cutting system.
c. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
d. Automatic mesh turning, stacking and conveying system.
e. Both longitude wire and weft wire can be fed from wire coils automatically.
