Product Details:
|
| Product Name: | Blue Galvanized Welded Wire Mesh Machine | Certification: | CE |
|---|---|---|---|
| Raw Material: | Galvanized Wire, Black Wire,stainless Steel Wire | Control System: | PLC Touch Screen |
| Current: | Alternating Current | Production Capacity: | 20 Sets/month |
| Brand Name: | Huayang | After-sales Service: | Free Spare Parts, Online Support, Video Technical Support |
| Welding Speed: | 60-100times/min | Minimum Mesh Size: | 12.7mm |
| High Light: | 100times/min Welded Wire Mesh Machine,reciprocating drawing Welded Wire Mesh Machine,160KVA chicken mesh making machine |
||
1. Product description

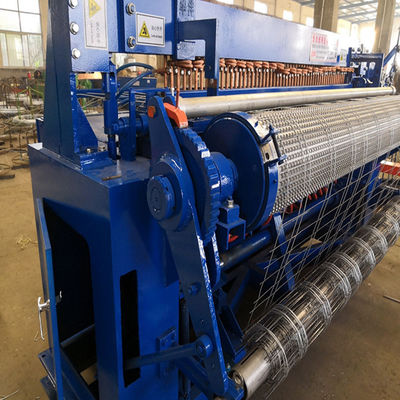

The blue galvanized welded wire mesh machine is used for making wire mesh. Servo motor galvanized roll mesh welding machine is used for making wire mesh. The drawing mode: servo motor reciprocating drawing, pneumatic tightening cross wire, to ensure the precise position of the drawing mesh. Each of the welding transformer is 160KVA. And the welding transformer is water cooling. And the welding electrodes are also water cooling.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW2 | 2m | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW2 | 2m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW2 | 2m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW2 | 2m | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW2 | 2m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW2 | 2m | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW2 | 2m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The blue galvanized welded wire mesh machine can be widely used in steel welded wire mesh production for concrete reinforcement, panels in construction and security wire mesh fences, in a small area and noiseless.
4. Advantages
a. The welding time and welding current can be adjusted on the control panel to guarantee solid welding.
b. Automatic winding, automatic stop after reaching the set length.
c. Only need one worker to operate this machine.
d. The use of sub - welding, reduce the power load, energy efficient.
e. Mesh pulling system adopts servo motor back and forward to ensure the mesh opening accurately and can be adjusted freely within a certain range.
