Product Details:
|
| Product Name: | Automatic One Meter Width Welded Wire Mesh Machine | Service: | Whole Life Technical Support |
|---|---|---|---|
| Pitch: | 1/2", 1", 2", 3", 4" | Minimum Mesh Size: | 12.7mm |
| Dimension: | 1800x1100x1100 | Pressure Mold: | Spring Pressure |
| Motor: | 4kw; 5.5kw;7.5kw | Welding Width: | 914-2100(mm) |
| Welding Speed: | 80-120times/min | Place Of Origin: | Hebei Province, Huanghua City |
| High Light: | Huayang Wire Net Making Machine,1m Width Wire Net Making Machine,straightening vertically Wire Mesh making Machine |
||
1. Product description

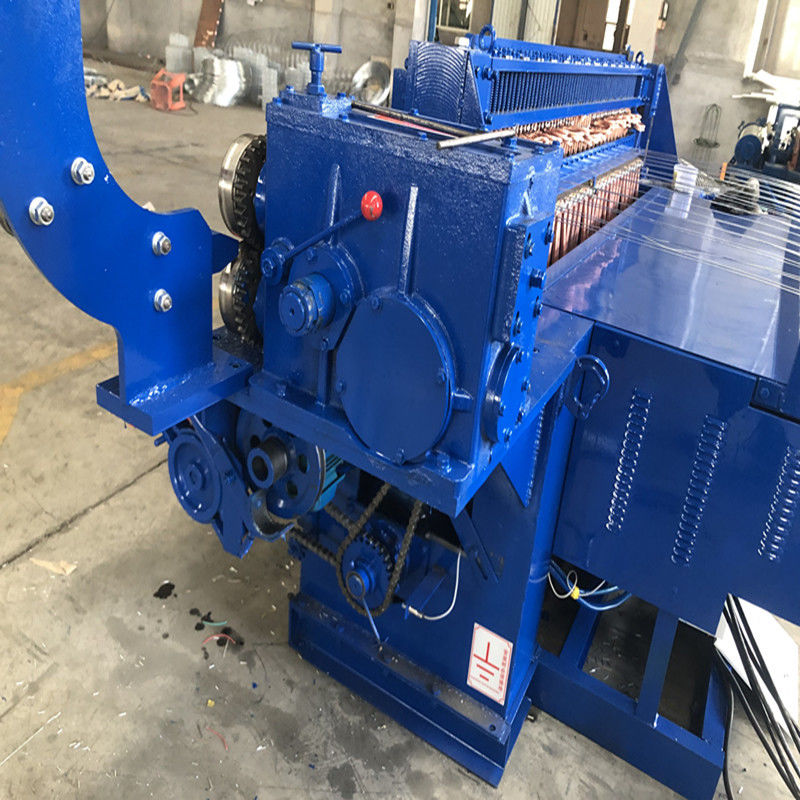

Automatic one meter width welded wire mesh machine is used for making wire mesh. Commissioning the machine in the factory and assembled complete assurance can be used immediately after purchase, no longer to assemble,complete accessories. Easy to operate, only one person can operate, lower labor costs.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1m | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1m | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1m | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic one meter width welded wire mesh machine can be widely used in agriculture. Welded mesh offers a flat surface which maintains a firm structure and can provide support or protection to other goods. Common uses for welded wire mesh, or steel mesh include: fencing panels, wire partitions, wire container panels, wire baskets, animal cages, enclosure works, screens, security panels, shelving, signage, stairways/treads, fishing traps and concrete reinforcement.
4. Advantages
a. Welding pressure steplessly adjust to apply multiple wire diameter.
b. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
c. To strengthen easy operation of machine,we use proximity switch between upper and lower welding heads,when cross wire doesn't reach,the machine will stop automatically.
d. Line wire vertical straightening system to provide high quality.
e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most
suitable machine.
