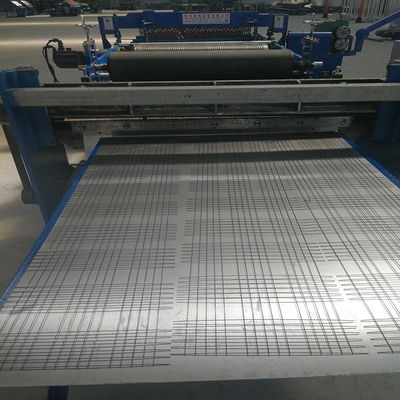

100A Reciprocating Drawing Mesh Panel Welding Machine Rib Wire

100A Reciprocating Drawing Mesh Panel Welding Machine Rib Wire
100A Reciprocating Drawing Mesh Panel Welding Machine Rib Wire

Large Image :  100A Reciprocating Drawing Mesh Panel Welding Machine Rib Wire

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

100A Reciprocating Drawing Mesh Panel Welding Machine Rib Wire

Description
Product Name: Galvanized Wire Orange Mesh Panel Welding Machine Rated Capacity: 125kvax5
Trademark: Huayang Std Weld Spots: 31 41 51 27 32
Color: Yellow & Blue Applicable Industry: Manufacturing Plant
Current: 70-100A After-sales Service: Free Spare Parts, Field Installation, Commissioning And Training
Welding Material: Hot-rolled Wire, Micro-alloyed, Ribbed Weight: 4.2T
High Light:

100A Mesh Panel Welding Machine

,

Reciprocating Drawing Mesh Panel Welding Machine

,

rib wire weld mesh machine

Galvanized Wire Orange Mesh Panel Welding Machine

1. Product description

Galvanized wire orange mesh panel welding machine is used for making wire mesh. The drawing mode: servo motor reciprocating drawing, pneumatic tightening cross wire, to ensure the precise position of the drawing mesh. Each of the welding transformer is 160KVA. And the welding transformer is water cooling. And the welding electrodes are also water cooling. The suitable material: ribbed wire, round bar, galvanized wire.


2. Technical parameter



Model Mesh width Wire diameter Line wire pitch Cross wire pitch
L-DHW-XSH 800-1200mm 0.5-1.2mm 1/4", 1/2", 1" 1/4", 1/2", 1"
Length  Mesh type Welding speed Area needed Weigth
Any length Panel 60-80 rows/min 4x12m About 3000kg


3. Application area

The galvanized wire orange mesh panel welding machine can be used in railway, highway, high-level construction. It is suitable for interior decoration, arts and crafts, anticorrosion, poultry breeding and other industries.

4. Advantages

a. Servo motor control, mesh size will be more precise than the stepper motor.

b. The new wire mesh welding machine added the bear wire net and carry equipment that makes the working more convenience .

c. In the same panel mesh, different size of mesh can be made on the line wire direction.

d. This wire mesh welding machine adopts synchronous control technique.

e. Using our patented cross wire fallen device, the device is compact, rational layout, reliable work.


100A Reciprocating Drawing Mesh Panel Welding Machine Rib Wire 0
