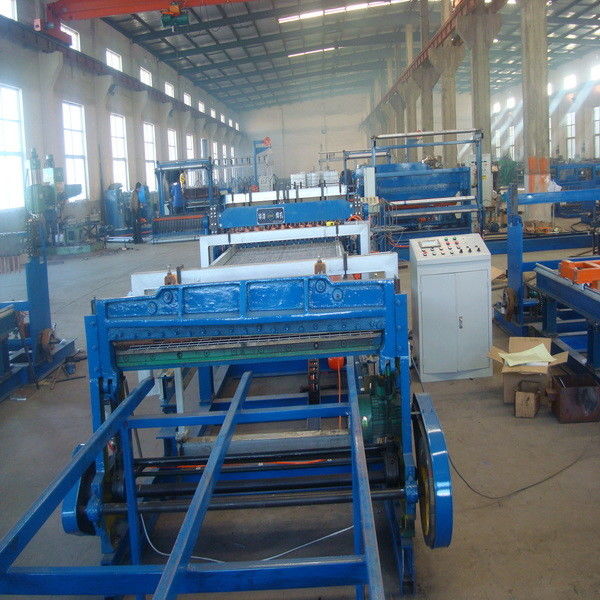

1.5m Width Coil Wire CNC Spot Welding Machine High Rigidity 70rows/Min

1.5m Width Coil Wire CNC Spot Welding Machine High Rigidity 70rows/Min
1.5m Width Coil Wire CNC Spot Welding Machine High Rigidity 70rows/Min

Large Image :  1.5m Width Coil Wire CNC Spot Welding Machine High Rigidity 70rows/Min

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

1.5m Width Coil Wire CNC Spot Welding Machine High Rigidity 70rows/Min

Description
Product Name: Automatic 1.5 Meter Width CNC Spot Welding Machine Feature: Automatic Wire Feeding
Welding Speed: 50-70 Rows Per Minute The Control System: CNC
Key Selling Points: High Rigidity Mesh Size: 50*50-300*300mm
Line Wire: Coil Wire Cross Wire: >25mm Adjustable
Rated Duty Cycle: 65% Feeding Type: Automatic
High Light:

1.5m Width CNC Spot Welding Machine

,

Coil Wire CNC Spot Welding Machine

,

70rows/min automatic spot welding machine

Automatic 1.5 Meter Width CNC Spot Welding Machine

1. Product description

Automatic 1.5 meter width CNC spot welding machine is used for making panel mesh. The system used large capacity storage device,and the weight of cross wire can reach 1 ton.Cross wire feeding automatically, accurate position. Line wire feeding system consists of straightening wheels and pressure rollers. The straightening wheel can make the wire mesh flat,the mesh hole precise and the diagonal error small. The function of the pressure roll is to make the whole wire mesh flat without distortion.


2. Technical parameter



Model HY-DHW-1500 HY-DHW-2000 HY-DHW-2500 HY-DHW-2800 HY-DHW-3300
Weld width(mm) 1500 2000 2500 2800 3300
Meshi trip(mm) Single trip 3000 and no limit on return
Std trans.spacing >=25mm-stepless adjustable
Std long.spacing >=50mm, and progressive increase by 50 >=100mm, and increase by 100
Std weld spots 31 41 51 27 32
Wire diameter(mm) 3.0-6.0 3.0-6.0 3.0-6.0 5.0-12.0 5.0-12.0
Weld speed(times/min 50-70 40-60 40-60 40-60 40-60
Trans material Straight bar/rod Straight bar
Long material Straight bar/rod
Control mode PLC programming servo motor stepper
Mesh diagonal error <=2
Mesh overall error <=2
Air pressure >=0.7
Weld material Cold drawn wire, galvanized wire, cold rolled ribbed steel


3. Application area

The automatic 1.5 meter width CNC spot welding machine can be used in highways, railways,brideges,around mountains(fence,fence net),construction(building roof mesh).


4. Advantages

a. In the same panel mesh, different size of mesh can be made on the line wire direction.

b. The weft wire of wire mesh welding machine feeding from the multi hopper which capacity is more over ten times than the traditional hopper.

c. We can design the welded wire mesh machine as your requirement.

d. To produce mesh by coiled wire continuously.

e. This machine is compact in structure, easily to operate and with fully functions. It has lower cost, high efficiency, reliable working, low energy consumption advantages.
