Product Details:
|
Product Name: | Used For Highway Fencing Roll Mesh Welding Machine | Color: | According To Your Requirement |
---|---|---|---|
Port: | Tianjin, China | Advantage: | High Welding Speed |
Pitch: | 1/2", 1", 2", 3", 4" | Production Capacity: | 30-100rolls/8hours |
Current: | Alternating Current | Core Components: | Engine, Gearbox, Motor, Gear |
Aperture/pitch: | 1", 2", 3", 4" 25, 50, 75, 100mm | Mesh Size: | 1/4′′-2.5′′ |
High Light: | highway fencing roll mesh welding machine,ce roll mesh welding machine,noiseless mesh welding machine |
1. Product description

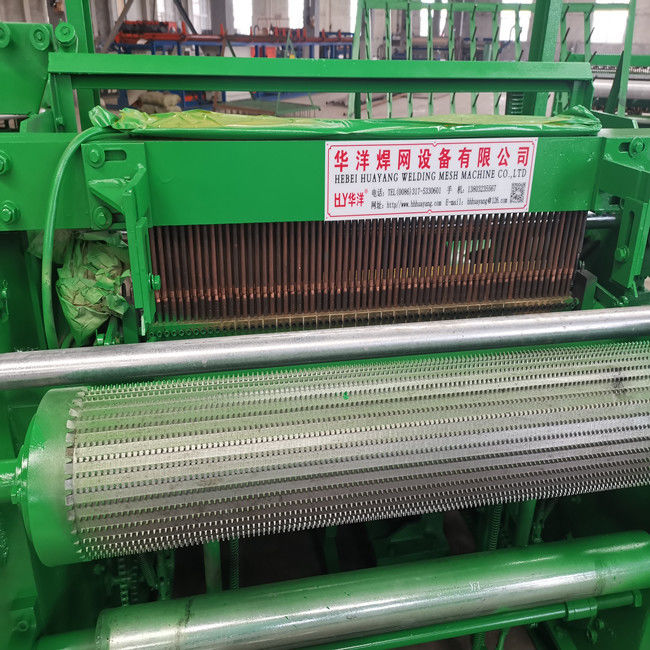

Used For Highway Fencing Roll Mesh Welding Machine is used for making roll mesh.The new electric welded wire mesh roll machine for construction is new designed and suitable for bigger range of diameter and different mesh hole size. The mesh pulling system is different from the traditional mesh pulling system by using rubber shaft pulling. The mesh aperture can be any size among 25-200mm.
2. Technical parameter
Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
R- DHW | 6 feet | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
Used For Highway Fencing Roll Mesh Welding Machine is also used for mining, commerce, transportation, construction (walls with nets, floor heating network), decorating, landscaping protection, all sectors of the fence, concrete roads, airport runways, tunnels, bridges, pipelines communication, water conservancy, power plant, dam, harbor, river beware wall, warehouses and other types of construction of the reinforced concrete structure with a net.
4. Advantages
a. The brake motor & helical gear reducer connect principal axis directly, which is with strong power, and stable work ability.
b. Suppling professional operate instruction and videos .
c. Providing free parts except quick-wear parts when the machine broken down within one year.
