Product Details:
|
| Product Name: | Used For Railway Fencing Wire Mesh Welding Machine | Welding Way : | Silicon Controlled Synchronous Control |
|---|---|---|---|
| Key Selling Points: | Long Service Life, Easy To Operate | Aperture/pitch: | 1", 2", 3", 4" 25, 50, 75, 100mm |
| Dimension: | 1800x1100x1100 | Weight: | 2T, 2.5T, 3T, 3.5T |
| Wire Materials: | GI/SS/BI Wire | Motor: | 4kw; 5.5kw;7.5kw |
| Welding Speed: | 60-100times/min | Production Capacity: | 20 Sets/month |
| High Light: | synchronous wire mesh welding machine,low noise wire mesh welding machine,noiseless fence mesh welding machine |
||
1. Product description

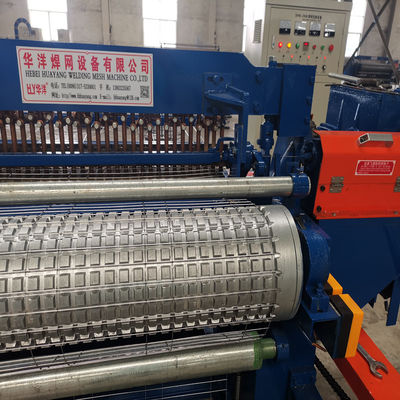

Used For Railway Fencing Wire Mesh Welding Machine is used for making wire mesh. This is automatic wire mesh welding machine line for the changeable diameter. PLC controlled system and touch screen make the machine line easy to operation. All the components used are with famous brand both aboard and at home.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 6 feet | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
Used For Railway Fencing Wire Mesh Welding Machine is suitable for interior decoration, arts and crafts, anticorrosion, poultry breeding and other industries.
4. Advantages
a. Welding pressure steplessly adjust to apply multiple wire diameter.
b. High speed mesh cutting system.
c. We use high quality chromised copper electrodes.They can be longer service life.
