Product Details:
|
| Product Name: | Automatic Electric Galvanized Wire Mesh Welding Machine | Mechanical Specifications: | According To Customer Requirement |
|---|---|---|---|
| Warranty: | 1 Year | Speed: | 90 Rows/min |
| Mesh Roll Length: | About 100m | Motor: | 4kw; 5.5kw;7.5kw |
| Life Time: | More Than 10 Years | Mesh Width: | 7 Feet |
| Power: | 5 Kw | Trademark: | Huayang |
| High Light: | Huayang Wire Mesh Welding Machine,Adjusted Cutter Wire Mesh Welding Machine,7ft Width chain link mesh making machine |
||
1. Product description

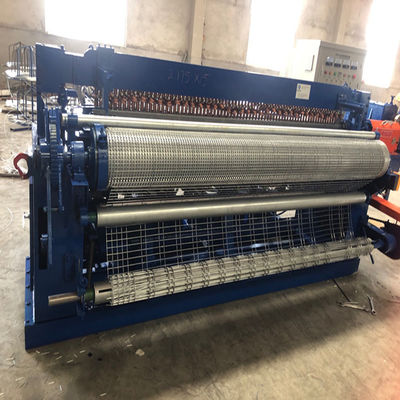

Automatic electric galvanized wire mesh welding machine is used for making wire mesh. This significantly reduces downtimes and eliminates the need for all the complex wire coil handling for the cross wire. Accordingly, the operation of the mesh welding machine is simplified, and productivity is again significantly increased.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic electric galvanized wire mesh welding machine can be widely used in algriculture. The machine produce the wire mesh. The people can use the wire mesh to make animal cages. Such as: chicken cage, dog cage, rabbit cage, etc. It is easy operation and economical.
4. Advantages
a. Line wire loop and balance system to ensure wire mesh accuracy.
b. Line wire vertical straightening system to provide high quality.
c. The welding transformer have 8 degrees and can be adjusted for different wire diameters.
d. The middle cutter and sider cutter can be adjusted randomly to make two mesh rolls at same time.
e. Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
