Product Details:
|
| Product Name: | Automatic Five Feet 440V Roll Mesh Welding Machine | Mesh Width: | 1-2.5m |
|---|---|---|---|
| Wire Diameter: | 0.45-2.6mm | Mesh Size: | 6.35-100mm |
| Application: | Construction Building Breeding Poultry Cage Fence | Speed: | 100 Rows/min |
| Color: | Blue, Green, Red Or Customized | Machine Type: | Roll Forming Machine |
| Nominal Voltage: | 380v 3 Phase Electric 50Hz | Power: | 85KVAX5 Set |
| High Light: | 440V Stainless Steel Welded Mesh,Huayang Stainless Steel Welded Mesh,5ft Width Roll Welding Machine |
||
1. Product description

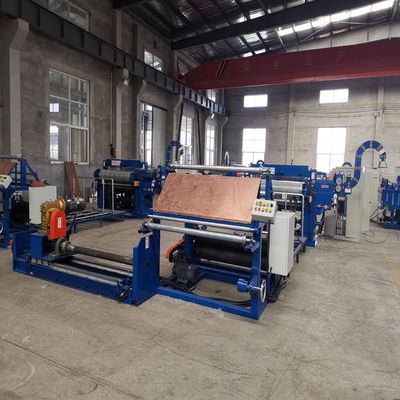

Automatic five feet 440v roll mesh welding machine is used for making wire mesh. Welding system uses servo motor control, work accurately and use process does not produce sludge, has little effect on the environment. All key components are well-known brands. And we have CE certification. Wire alignment and length by integrated design, and the use of PLC control, easy to operate.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic five feet 440v roll mesh welding machine is used in the fields of industry , agriculture, farming, breeding, construction, transport, mining and other areas. Machines protective shelter, animal and livestock fence, landscaped fence,retaining Window column, crossing fences, poultry cages, egg baskets, food basket, wastebasket and decoration.
4. Advantages
a. It has adjustable middle cutter to cut mesh in different size.
b. High stability ,low noise, automatically straightening, automatically feeding wire .
c. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
d. The line wire is fed from coils; the cross wire is pre-cut, fed from hopper driven by step motor.
e. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.
