Servo 100rolls/8hrs GI Wire Net Making Machine , 10kw Mesh Manufacturing Machine

Certification
China Hebei Huayang Welding Mesh Machine Co., Ltd. certification
China Hebei Huayang Welding Mesh Machine Co., Ltd. certification
Customer Reviews
We bought wire mesh welding machine from Huayang 10 years ago, so far it is still running with good quality. We come to buy again and bring the pictures of the old but useful machine. We really thanks Huayang for such good products. It is worth of recommendation.

—— Gajiv

The best welded wire mesh machine supplier in China with no question, we had the privilege of doing business here more than once, and we have experienced good quality, professionalism and friendship like nowhere else. We would defiantly recommend it for anyone wish to have these kind of machines.

—— Abdollah Nassar

I'm Online Chat Now

Servo 100rolls/8hrs GI Wire Net Making Machine , 10kw Mesh Manufacturing Machine

Servo 100rolls/8hrs GI Wire Net Making Machine , 10kw Mesh Manufacturing Machine
Servo 100rolls/8hrs GI Wire Net Making Machine , 10kw Mesh Manufacturing Machine

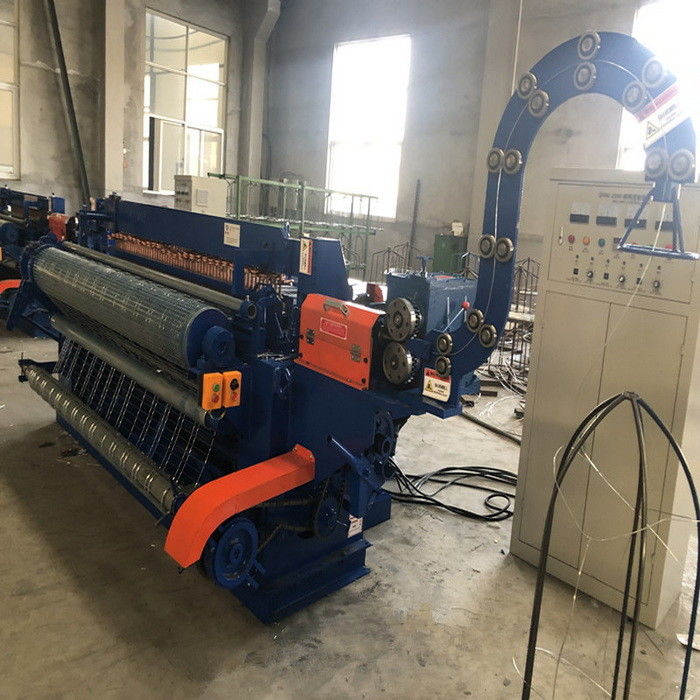

Large Image :  Servo 100rolls/8hrs GI Wire Net Making Machine , 10kw Mesh Manufacturing Machine

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

Servo 100rolls/8hrs GI Wire Net Making Machine , 10kw Mesh Manufacturing Machine

Description
Product Name: Servo Motor Galvanized Welded Wire Mesh Machine Key Selling Points: Servo Motor
Power: 5kw,10kw Rated Capacity: 120kva
Machine Width: 2000-4500mm Mechanical Specifications: According To Customer Requirement
Motor: 4kw; 5.5kw;7.5kw Aperture/pitch: 1", 2", 3", 4" 25, 50, 75, 100mm
Wire Materials: GI/SS/BI Wire Production Capacity: 30-100rolls/8hours
High Light:

Servo GI Wire Net Making Machine

,

100rolls/8hrs GI Wire Net Making Machine

,

10kw Mesh Manufacturing Machine

Servo Motor Galvanized Welded Wire Mesh Machine

1. Product description

Servo motor galvanized welded wire mesh machine is used for making wire mesh. This design will enable the machine runs all the time,instead of stopping it when to discharge the welded roll mesh.Only need one people to handle the machine,he can manage the machine from start, repair to discharge.



2. Technical parameter



Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 1-2.5m 1/2x1/2 0.45-0.85 90-120 130 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1x1 0.45-0.85 90-120 130 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 0.8-1.6

90-110

100 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4


3. Application area

The servo motor galvanized welded wire mesh machine is according to the specialty of the automatic electric galvanized roll mesh welding machine, it is widely used in construction. For example: the outer wall of the building, concrete and the high-rise buiding. It becomes the widely-using material in the modern time. For the using of this kind of wire mesh, the heat preservation and anti-cracking work of the modern construction can proceed favorablely.


4. Advantages

a. We can provide detailed installation videos, manuals, electrical schemes, layouts to help your machine installation.


b. Both longitude wire and weft wire can be fed from wire coils automatically.


c. Our best engineer to buyer's factory for installation, debugging and training.


d. The mesh length can be set on the counter.

e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most suitable machine.


Servo 100rolls/8hrs GI Wire Net Making Machine , 10kw Mesh Manufacturing Machine 0
