90 Rows/Min Straightener Roll Mesh Welding Machine Galvanized Copper Electrode

90 Rows/Min Straightener Roll Mesh Welding Machine Galvanized Copper Electrode
90 Rows/Min Straightener Roll Mesh Welding Machine Galvanized Copper Electrode

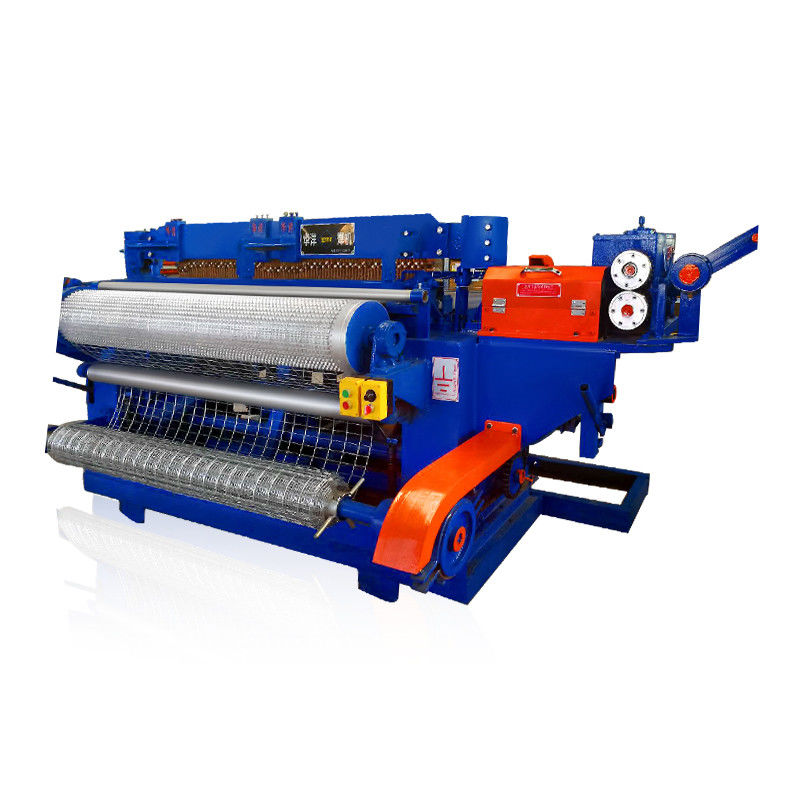

Large Image :  90 Rows/Min Straightener Roll Mesh Welding Machine Galvanized Copper Electrode

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

90 Rows/Min Straightener Roll Mesh Welding Machine Galvanized Copper Electrode

Description
Product Name: Automatic Electric Galvanized Roll Mesh Welding Machine Mesh Width: 2m
Wire Diameter: 0.45-2.6 Mm Mesh Size: 1"
Raw Material: Galvanized Wire Voltage: 410V/50HZ
Speed: 90 Rows/min Color: Blue, Green, Orange Or As Your Request
Certification: CE After-sales Service: Free Spare Parts, Online Support, Video Technical Support
High Light:

90 rows/min Roll Mesh Welding Machine

,

straightener Roll Mesh Welding Machine

,

copper electrode fence mesh welding machine

Automatic Electric Galvanized Roll Mesh Welding Machine

1. Product description

Automatic electric galvanized roll mesh welding machine is used for making wire mesh. The cross wire are fed from wire coil automatically, then through guide rollers and straightener. The mesh pulling is controlled by servo motor, cross wire space can be adjusted by PLC. The two side cutters on the upper beam can be adjusted for side trimming, and make different mesh width. Our  automatic electric galvanized roll mesh welding machine has highly improved the work efficiency. And the mesh is welded more level and smooth.

2. Technical parameter


ModelMesh widthMinimum mesh size (inch)Wire diameter(mm)Welding speed (rows/min)Roll mesh length (m)Other available mesh size (inch)
R- DHW22m1/2x1/20.45-0.8590-1201301/2x1, 1x1/2, 1x1, 2x2
R- DHW22m1/2x1/20.6-1.390-1201101/2x1, 1x1/2, 1x1, 2x2
R- DHW22m1/2x1/20.8-1.680-901001/2x1, 1x1/2, 1x1, 2x2
R- DHW22m1x10.45-0.8590-1201301x2, 2x1, 2x2, 2x4
R- DHW22m1x10.6-1.390-1101101x2, 2x1, 2x2, 2x4
R- DHW22m1x10.8-1.6

90-110

1001x2, 2x1, 2x2, 2x4
R- DHW22m1x11.4-2.680-90801x2, 2x1, 2x2, 2x4


3. Application area

According to the specialty of the automatic electric galvanized roll mesh welding machine, it is widely used in construction. For example: the outer wall of the building, concrete and the high-rise buiding. It becomes the widely-using material in the modern time. For the using of this kind of wire mesh, the heat preservation and anti-cracking work of the modern construction can proceed favorablely.  For having the good machine, we can make good mesh, then can make good fence. At last, we can have good protection. So wherever in many industries and in our personal life, the automatic electric galvanized roll mesh welding machine has become more and more important.

4. Advantages

a. The welding time and welding current can be adjusted on the control panel to guarantee solid welding.

b. Sturdy structure and world famous electric components are used like Simens, Schneider, Delta etc.

c. Water cooling transformer is used for hot area.

d. Patent design for process of thick hard black wire.ne time two or three mesh rolls can be produced.

e. We use high quality chromised copper electrodes.They can be longer service life.
