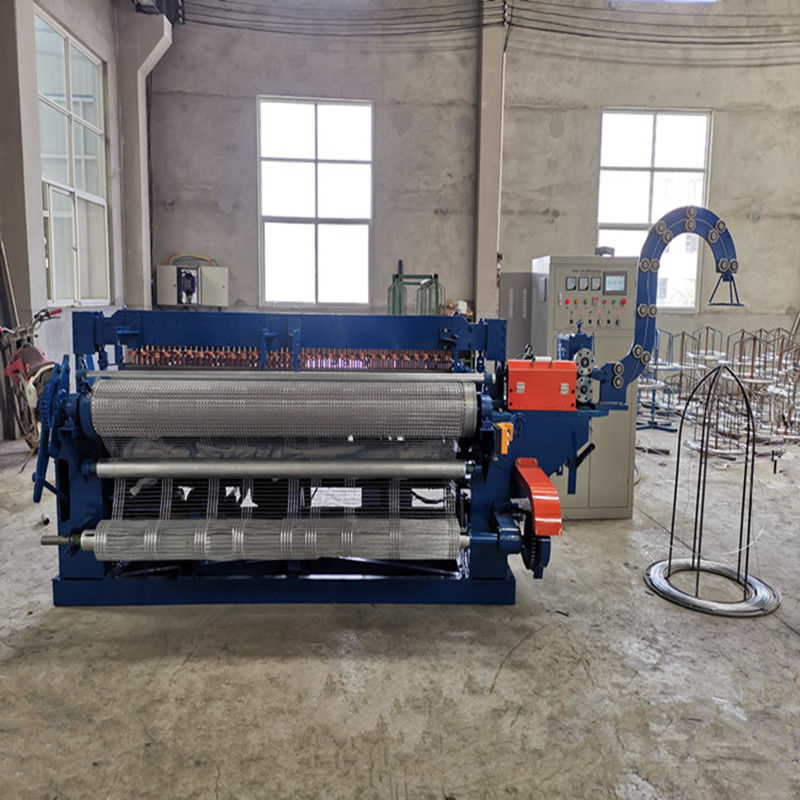

7ft Coiled Wire Roll Mesh Welding Machine Spring Pressure Weft Positioning

7ft Coiled Wire Roll Mesh Welding Machine Spring Pressure Weft Positioning
7ft Coiled Wire Roll Mesh Welding Machine Spring Pressure Weft Positioning

Large Image :  7ft Coiled Wire Roll Mesh Welding Machine Spring Pressure Weft Positioning

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

7ft Coiled Wire Roll Mesh Welding Machine Spring Pressure Weft Positioning

Description
Product Name: Automatic Seven Feet Width Roll Mesh Welding Machine Mesh Width: 7 Feet
Wire Diameter: 0.45-2.6 Mm Minimum Mesh Size: 12.7mm
Raw Material: Black Coiled Wire Pressure Mold: Spring Pressure
Speed: 110 Rows/min Key Selling Points: Long Service Life, Easy To Operate
Certification: CE Mesh Shape: Square
High Light:

7ft Roll Mesh Welding Machine

,

coiled wire Roll Mesh Welding Machine

,

weft positioning weld mesh machine

Automatic Seven Feet Width Roll Mesh Welding Machine

1. Product description

Automatic seven feet width roll mesh welding machine is used for making wire mesh. This kind of wire mesh welding machine is equipped with precise equipment for weft cutting and positioning, so the length of wefts is identical and regular, it is unnecessary to slice the sides. It has stable function, firm welded point and without welded tracks. High stability, low noise, automatically straightening, automatically feeding wire.

2. Technical parameter


Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 7 feet 1/2x1/2 0.45-0.85 90-120 130 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 7 feet 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 7 feet 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 7 feet 1x1 0.45-0.85 90-120 130 1x2, 2x1, 2x2, 2x4
R- DHW 7 feet 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 7 feet 1x1 0.8-1.6

90-110

100 1x2, 2x1, 2x2, 2x4
R- DHW 7 feet 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4


3. Application area

The automatic seven feet width roll mesh welding machine can be widely used in algriculture. Steel welded wire mesh production for concrete reinforcement, panels in construction and security wire mesh fences, in a small area and noiseless. The welded wire mesh panels are highly demanded and consumed in construction, either for concrete reinforcement or panels in walls, floors, roofs and other applications in constructions and building.

4. Advantages

a. High stability ,low noise, automatically straightening, automatically feeding wire.

b. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.

c. Mesh pulling system adopts servo motor back and forward to ensure the mesh opening accurately and can be adjusted freely within a certain range.

d. Spooling machine, repair table, we use good material to guarantee it is sturdy and stable, easy to operate.

e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most
suitable machine.
