|Product Name:||Blue Galvanized Wire Mesh Welding Machine||Wire Diameter:||0.45-2.6 Mm|
|Pitch:||1/2", 1", 2", 3", 4"||Brand Name:||Huayang|
|Speed:||100 Rows/min||Wire Materials:||GI/SS/BI Wire|
|Applicable Industries:||Manufacturing Plant, Construction Works||Final Product:||Roll Mesh|
|Core Components:||Engine, Gearbox, Motor, Gear||Advantage:||High Welding Speed|
BI Wire Iron Net Making Machine,
Coil Straightening Wire Mesh Welder,
anticracking Wire Mesh Welder
1. Product description

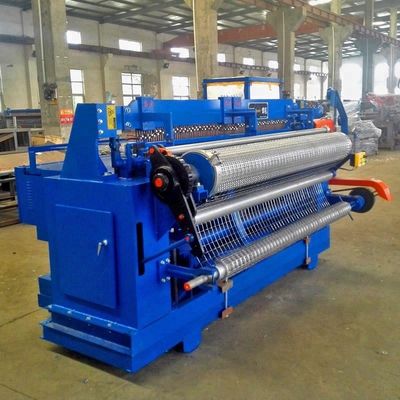

Blue galvanized wire mesh welding machine is used for making wire mesh. This machine is equipped with precise equipment for weft cutting and position, so the length of wefts is identical and regular, it is unnecessary to slice the side. Our products applied the most advanced technology. He achieved CE certification. Applied for the national patent.
2. Technical parameter
|Model||Mesh width||Minimum mesh size (inch)||Wire diameter(mm)||Welding speed (rows/min)||Roll mesh length (m)||Other available mesh size (inch)|
|R- DHW||1-2.5m||1/2x1/2||0.45-0.85||90-120||130||1/2x1, 1x1/2, 1x1, 2x2|
|R- DHW||1-2.5m||1/2x1/2||0.6-1.3||90-120||110||1/2x1, 1x1/2, 1x1, 2x2|
|R- DHW||1-2.5m||1/2x1/2||0.8-1.6||80-90||100||1/2x1, 1x1/2, 1x1, 2x2|
|R- DHW||1-2.5m||1x1||0.45-0.85||90-120||130||1x2, 2x1, 2x2, 2x4|
|R- DHW||1-2.5m||1x1||0.6-1.3||90-110||110||1x2, 2x1, 2x2, 2x4|
|100||1x2, 2x1, 2x2, 2x4|
|R- DHW||1-2.5m||1x1||1.4-2.6||80-90||80||1x2, 2x1, 2x2, 2x4|
3. Application area
The blue galvanized wire mesh welding machine is used for roll mesh welding line. According to the specialty of the automatic electric galvanized roll mesh welding machine, it is widely used in construction. For example: the outer wall of the building, concrete and the high-rise buiding. It becomes the widely-using material in the modern time. For the using of this kind of wire mesh, the heat preservation and anti-cracking work of the modern construction can proceed favorablely. For having the good machine, we can make good mesh, then can make good fence. At last, we can have good protection. So wherever in many industries and in our personal life, the automatic electric galvanized roll mesh welding machine has become more and more important.
a. Raw materials can be galvanized wire, black wire and stainless steel wire.
b. Both longitude wire and weft wire can be fed from wire coils automatically.
c. The mesh length can be set on the counter.
d. We are equipped with large production assembly line, annual production capacity is 500sets.
e. To strengthen easy operation of machine,we use proximity switch between upper and lower welding heads,when cross wire doesn't reach,the machine will stop automatically.
