90rows/Min Dia 2.6mm Iron Wire Making Machine , PLC Fence Mesh Welding Machine

Certification
China Hebei Huayang Welding Mesh Machine Co., Ltd. certification
China Hebei Huayang Welding Mesh Machine Co., Ltd. certification
Customer Reviews
We bought wire mesh welding machine from Huayang 10 years ago, so far it is still running with good quality. We come to buy again and bring the pictures of the old but useful machine. We really thanks Huayang for such good products. It is worth of recommendation.

—— Gajiv

The best welded wire mesh machine supplier in China with no question, we had the privilege of doing business here more than once, and we have experienced good quality, professionalism and friendship like nowhere else. We would defiantly recommend it for anyone wish to have these kind of machines.

—— Abdollah Nassar

I'm Online Chat Now

90rows/Min Dia 2.6mm Iron Wire Making Machine , PLC Fence Mesh Welding Machine

90rows/Min Dia 2.6mm Iron Wire Making Machine , PLC Fence Mesh Welding Machine
90rows/Min Dia 2.6mm Iron Wire Making Machine , PLC Fence Mesh Welding Machine

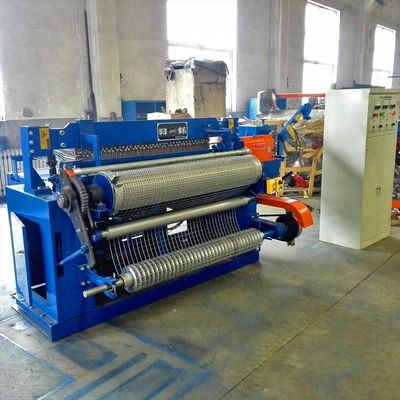

Large Image :  90rows/Min Dia 2.6mm Iron Wire Making Machine , PLC Fence Mesh Welding Machine

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

90rows/Min Dia 2.6mm Iron Wire Making Machine , PLC Fence Mesh Welding Machine

Description
Product Name: Automatic Iron Net Wire Mesh Welding Machine Wire Diameter: 0.45-2.6 Mm
Rated Capacity: 120kva Voltage: 410V/50HZ
Speed: 90rows/min Color: Blue, Green, Orange Or As Your Request
Certification: CE Raw Material: Galvanized Wire, Black Wire,stainless Steel Wire
Control System: PLC Touch Screen Minimum Mesh Size: 12.7mm
High Light:

90rows/min Iron Wire Making Machine

,

Dia 2.6mm Iron Wire Making Machine

,

PLC Fence Mesh Welding Machine

Automatic Iron Net Wire Mesh Welding Machine

1. Product description

Automatic iron net wire mesh welding machine is used for making wire mesh. Both line wire coils and cross wire coils are fed automatically,the raw material is applicable for common low carbon steel wires or galvanized wires.This machine has the advantages such as reasonable structure design,low noise,working stably,easy to operate and so on.The mesh size is rather precise,the width and length for welded mesh can be set according to the practical needs.


2. Technical parameter

Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW2 2m 1/2x1/2 0.45-0.85 90-120 130 1/2x1, 1x1/2, 1x1, 2x2
R- DHW2 2m 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW2 2m 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW2 2m 1x1 0.45-0.85 90-120 130 1x2, 2x1, 2x2, 2x4
R- DHW2 2m 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW2 2m 1x1 0.8-1.6

90-110

100 1x2, 2x1, 2x2, 2x4
R- DHW2 2m 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4


3. Application area

The automatic iron net wire mesh can be widely used in algriculture. The machine produce the wire mesh. The people can use the wire mesh to make animal cages. Such as: chicken cage, dog cage, rabbit cage, etc. It is easy operation and economical.

4. Advantages

a. The welding time and welding current can be adjusted on the control panel to guarantee solid welding.

b. Sturdy structure and world famous electric components are used like Simens, Schneider, Delta etc.

c. Water cooling transformer is used for hot area.

d. We are the birthplace of wire mesh welding machine, representing the state of art technology,and is the first to use variable-frequency drive control.

e. Mesh pulling system adopts servo motor back and forward to ensure the mesh opening accurately and can be adjusted freely within a certain range.
