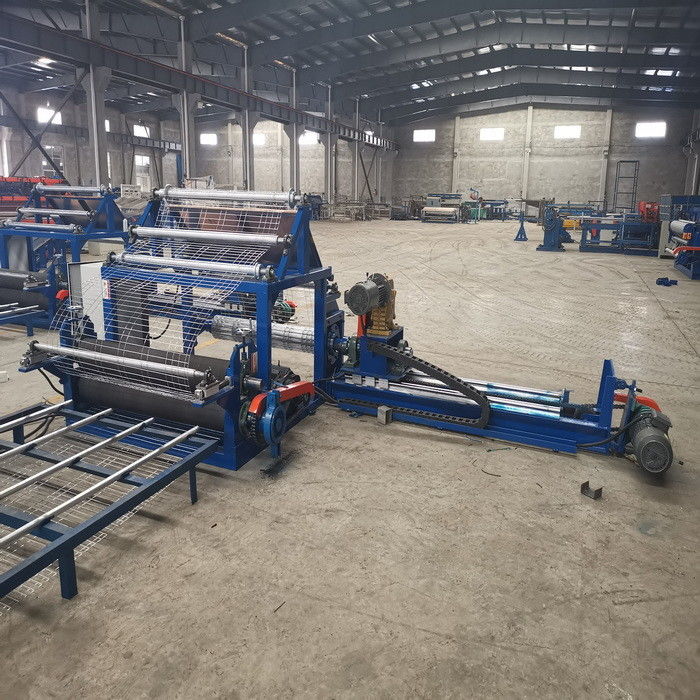

7ft Width Stepless Pressure Drive Shaft Welding Machine Roll Delta Control

7ft Width Stepless Pressure Drive Shaft Welding Machine Roll Delta Control
7ft Width Stepless Pressure Drive Shaft Welding Machine Roll Delta Control

Large Image :  7ft Width Stepless Pressure Drive Shaft Welding Machine Roll Delta Control

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

7ft Width Stepless Pressure Drive Shaft Welding Machine Roll Delta Control

Description
Product Name: Automatic Black Wire Roll Drive Shaft Welding Machine Wire Diameter: 0.45-2.6 Mm
Condition: New Applicable Industries: Manufacturing Plant, Construction Works
Application: Construction Mesh Width: 1-7feet
Certification: CE Aperture/pitch: 1", 2", 3", 4" 25, 50, 75, 100mm
Weight: 2T, 2.5T, 3T, 3.5T Production Capacity: 30-100rolls/8hours
High Light:

stepless pressure Drive Shaft Welding Machine

,

7ft Width Drive Shaft Welding Machine

,

Delta control gi wire welding machine

Automatic Black Wire Roll Drive Shaft Welding Machine

1. Product description

Automatic black wire roll drive shaft welding machine is used for making wire mesh. The machine adopts synchronous control technique, welding time and sub-control welding is composed of PLC program system. Touch screen input panel forms make operation more intellectualized and reasonable. New and high efficiency of welding machine transformer expands welding wire diameter scope. Easy handling and high flexibility and high working efficiency achieve a perfect welded wire mesh machine.



2. Technical parameter



Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 1-2.5m 1/2x1/2 0.45-0.85 90-120 130 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1x1 0.45-0.85 90-120 130 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 0.8-1.6

90-110

100 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4


3. Application area

The automatic black wire roll drive shaft welding machine is used for making wire mesh. The welded wire mesh panels are highly demanded and consumed in construction, either for concrete reinforcement or panels in walls, floors, roofs and other applications in constructions and building.



4. Advantages

a.The main frame is made of thick steel plate and structural steel, which is more reliable and fastness.


b. High quality constant customer resources from home and abroad, with good reputation.


c. Welding using a new type of high efficient welding net transformer.


d. Welding pressure steplessly adjust to apply multiple wire diameter.

e. It has adjustable middle cutter to cut mesh in different size.



7ft Width Stepless Pressure Drive Shaft Welding Machine Roll Delta Control 0
