Product Details:
|
| Product Name: | Automatic Black Wire Welded Wire Mesh Machine | Condition: | New |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Construction Works | Mesh Width: | 1-7feet |
| Aperture/pitch: | 1", 2", 3", 4" 25, 50, 75, 100mm | Production Capacity: | 30-100rolls/8hours |
| Nominal Voltage: | 380v 3 Phase Electric 50Hz | Pressure Way : | Spring-weighted |
| Welding Way : | Silicon Controlled Synchronous Control | Wire Feeding Way : | Line Wire And Cross Wire Feeding From Wire Coil Automatically |
| High Light: | Huayang Stainless Steel Automatic Welding Machine,100rolls/8hrs Stainless Steel Automatic Welding Machine,Spring Weighted weld mesh manufacturing machine |
||
1. Product description

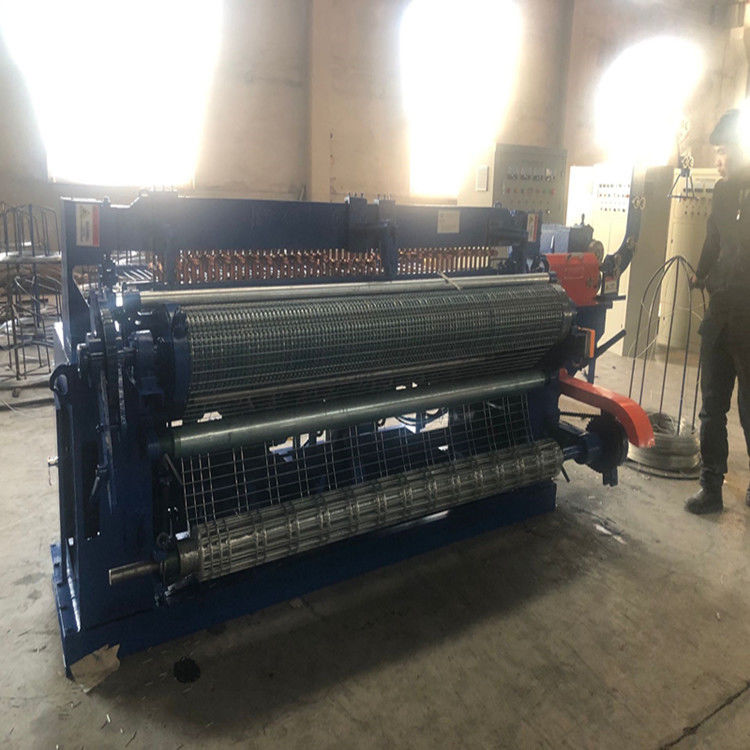

Automatic black wire welded wire mesh machine is used for making wire mesh. The finished products are rolled mesh. This machine is full automatic to feeding cross wire and line wires. Raw material: low-carbon steel wire, galvanizing wire or stainless steel wire. The machine with low noise, stable working, easy to operation feature .
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic black wire welded wire mesh machine is used for making wire mesh. Mainly used for the construction mesh, breeding mesh, interior decoration etc.
4. Advantages
a.The main frame is made of thick steel plate and structural steel, which is more reliable and fastness.
b. High quality constant customer resources from home and abroad, with good reputation.
c. Welding electrodes are made from Chromium Zirconium copper, durable.
d. The welding transformers can be adjusted for different wire diameters.
e. The brake motor & helical gear reducer connect principal axis directly, which is with strong power, and stable work ability.
