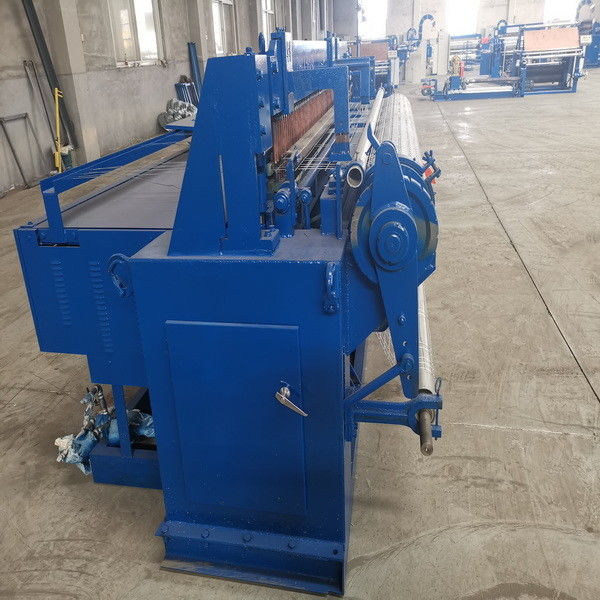

Large Image :  6ft Width Noiseless Automatic Welding Machine , 100times/Min Stainless Steel Welders

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

6ft Width Noiseless Automatic Welding Machine , 100times/Min Stainless Steel Welders

Description
Product Name: Automatic Six Feet Width Welded Wire Mesh Machine Power: 5kw
Voltage: 220V/380V/415V/440V Mechanical Specifications: According To Customer Requirement
Welding Type: Resistance Welding Color: Customer's Request
Control System: PLC Touch Screen Welding Speed: 60-100times/min
Transformer: Water-cooling Transformer Mesh Width: 1-7feet
High Light:

6ft Width Automatic Welding Machine

,

noiseless Automatic Welding Machine

,

100times/Min Stainless Steel Welders

Automatic Six Feet Width Welded Wire Mesh Machine

1. Product description



Automatic six feet width welded wire mesh machine is used for making wire mesh. The line wire is fed from coils; the cross wire is pre-cut, fed from hopper driven by step motor. At the same time, the machine is also equipped with automatic cutting mesh machine, when the machine finishes the mesh length according to the setting parameters, the mesh will be cut by the cutting mesh machine automatically.



2. Technical parameter



Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 6feet 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 6feet 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 6feet 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 6feet 1x1 0.8-1.6

90-110

100 1x2, 2x1, 2x2, 2x4
R- DHW 6feet 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4



3. Application area



The automatic six feet width welded wire mesh machine can be widely used in mining, petroleum, chemistry, food, medicine, machine manufacturing industry. It is used for machine protection for the above industries. The stainless steel wire mesh is even and constant. Welding spot is sturdy. The machinery property is stable, anti-corrosion perfomance is good.



4. Advantages



a. Electrode lift system to extend electrode life.



b.Line wire loop and balance system to ensure wire mesh accuracy.



c. The mesh width is equal to the length of weft wire.



d. The electric current, line and weft opening are adjustable.



e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most suitable machine.
