Product Details:
|
| Product Name: | Automatic Seven Feet Width Welded Wire Mesh Machine | Mesh Shape: | Square |
|---|---|---|---|
| Mesh Type: | In Roll | Mesh Size: | 1/4′′-2.5′′ |
| Pitch: | 1/2", 1", 2", 3", 4" | Control System: | PLC+touch Screen |
| Applicable Industries: | Retail, Other | Mesh Roll Length: | About 100m |
| Certification: | CE | Loading Port: | Tianjin |
| High Light: | 7ft Width Welded Wire Mesh Machine,Coiled Wire Welded Wire Mesh Machine,Anticracking stainless steel welding equipment |
||
1. Product description

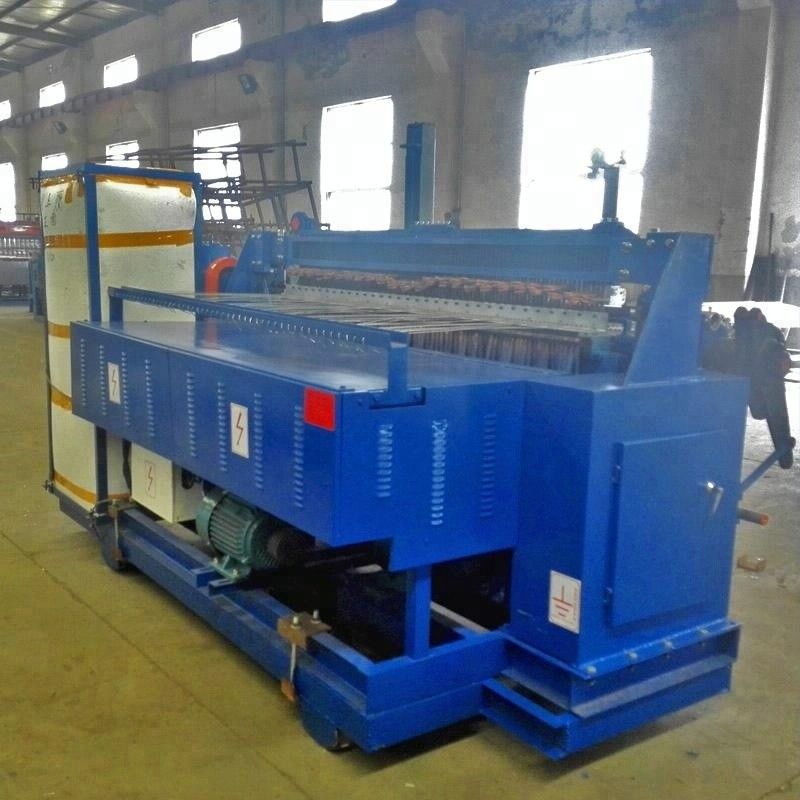

The automatic seven feet width welded wire mesh machine is used for making wire mesh. The raw material is black coiled wire. The width of the mesh is 4 feet. The wire diameter is from 0.45-2.6mm. The minimum mesh size is 1/2 inch. We have more than 20 years experiece in the automatic black coiled wire roll mesh welding machine. The features are easy handling, improve production efficiency and reduce labor costs. Welding host, an alarm device that can improve the safety level and reduce the failure rate. The greatest degree to ensure the machine to run smoothly.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 7feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 7feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 7feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 7feet | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 7feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic seven feet width welded wire mesh machine is extensively used in construction, hollow wall reinforcement, increased elasticity, prevent cracks in the wall, it is a good building materials. Is used for the foundation, wall, etc. have a place of strength and stability as well as local high local stress requirements at each of the key used in the reinforcement of brick and block construction of cement mortar, so that brick-and-mortar form an integral whole structure, the maximum stress and shock absorption, excellent shock cracking, good building materials.
4. Advantages
a. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.
b. It adopts Schneider low voltage apparatus.
c. Increased cost-effectiveness and reduced staffing requirements.
d. It has adjustable middle cutter to cut mesh in different size.
e. Welding using a new type of high efficient welding net transformer.
