Product Details:
|
| Product Name: | Automatic Four Feet Width Stainless Steel Spot Welding Machine | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Electrodes: | Single Or Double Row | Rated Capacity: | 120kva |
| Function: | Making Fence Mesh | Drive Type: | Automatic |
| Pressure Way : | Spring-weighted | Weight: | 2T, 2.5T, 3T, 3.5T |
| Mesh Width: | Max.2.5m | Color: | Customer's Request |
| High Light: | 4ft Width SS Welding Machine,Spooling SS Welding Machine,220V Automatic Welding Equipment |
||
1. Product description

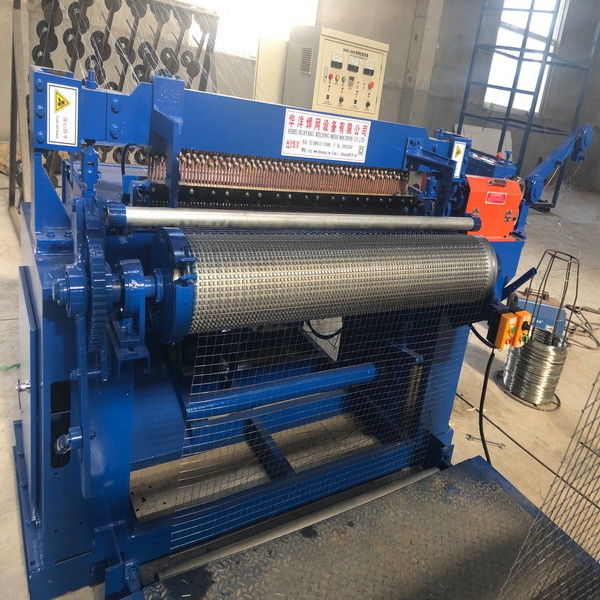

Automatic four feet width stainless steel spot welding machine is used for making wire mesh. The production line consists of main welding machine,electrical control cabinet, repairing table ,repairing machine, line wire frame, spooling machine and bobbins. Both line wire and cross wire can be feeded from wire coils automatically. The raw material is applicable for low-carbon steel wire or stainless steel wire.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 2m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 2m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 2m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 2m | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 2m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic four feet width stainless steel spot welding machine is used in the fields of industry , agriculture, farming, breeding, construction, transport, mining and other areas. Machines protective shelter, animal and livestock fence, landscaped fence,retaining Window column, crossing fences, poultry cages, egg baskets, food basket, wastebasket and decoration.
4. Advantages
a. Line wire loop and balance system to ensure wire mesh accuracy.
b. We can provide detailed installation videos, manuals, electrical schemes, layouts to help your machine installation.
c. The electric current, line and weft opening are adjustable.
d. Rolling the mesh and stop welding automatically only setting the length by counter in advance.
e. High stability ,low noise, automatically straightening, automatically feeding wire.
