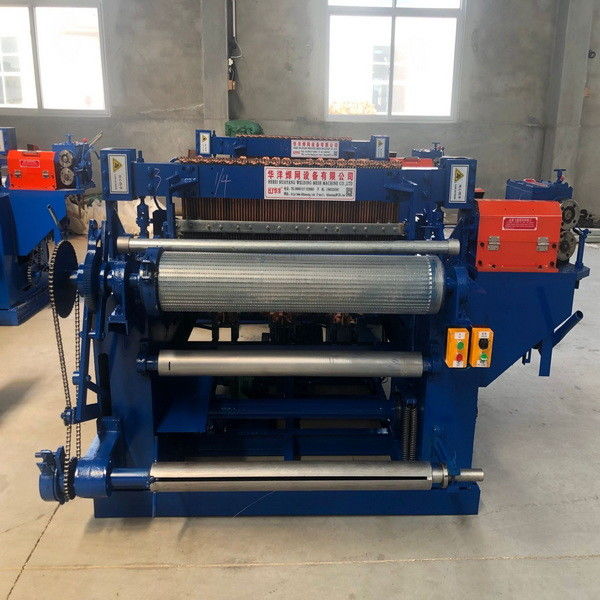

Wire Diameter 0.45-0.85mm Roll Mesh Welding Machine

Certification
China Hebei Huayang Welding Mesh Machine Co., Ltd. certification
China Hebei Huayang Welding Mesh Machine Co., Ltd. certification
Customer Reviews
We bought wire mesh welding machine from Huayang 10 years ago, so far it is still running with good quality. We come to buy again and bring the pictures of the old but useful machine. We really thanks Huayang for such good products. It is worth of recommendation.

—— Gajiv

The best welded wire mesh machine supplier in China with no question, we had the privilege of doing business here more than once, and we have experienced good quality, professionalism and friendship like nowhere else. We would defiantly recommend it for anyone wish to have these kind of machines.

—— Abdollah Nassar

I'm Online Chat Now

Wire Diameter 0.45-0.85mm Roll Mesh Welding Machine

Wire Diameter 0.45-0.85mm Roll Mesh Welding Machine
Wire Diameter 0.45-0.85mm Roll Mesh Welding Machine

Large Image :  Wire Diameter 0.45-0.85mm Roll Mesh Welding Machine

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

Wire Diameter 0.45-0.85mm Roll Mesh Welding Machine

Description
Product Name: Wire Diameter 0.45-0.85mm Roll Mesh Welding Machine Mesh Width: Max.2.5m
Wire Diameter: 0.45-2.6 Mm Aperture/pitch: 1", 2", 3", 4" 25, 50, 75, 100mm
Warranty: 1 Year Voltage: 380V/50HZ
Speed: 110 Rows/min Color: Blue, Green, Orange Or Customized
Usage: Produce Wire Mesh Applicable Industries: Manufacturing Plant, Construction Works

Wire Diameter 0.45-0.85mm Roll Mesh Welding Machine

1. Product description



Wire diameter 0.45-0.85mm roll mesh welding machine is used for making wire mesh. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.Finished products are both roll mesh.



2. Technical parameter



Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW5 5 feet 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW5 5 feet 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW5 5 feet 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW5 5 feet 1x1 0.8-1.6

90-110

100 1x2, 2x1, 2x2, 2x4
R- DHW5 5 feet 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4



3. Application area



The wire diameter 0.45-0.85mm roll mesh welding machine can be widely used in fencing panels, wire partitions, wire container panels, wire baskets, animal cages, enclosure works, screens, security panels, shelving, signage, stairways/treads, fishing traps and concrete reinforcement.



4. Advantages



a. We are the birthplace of wire mesh welding machine, representing the state of art technology,and is the first to use variable-frequency drive control.



b. 90% welded mesh practitioners are aware of Huayang, and at oversea, Huayang represents highest level of quality and technology in the industry.



c. One time two or three mesh rolls can be produced.



d. The welding transformers can be adjusted for different wire diameters.



e. High quality constant customer resources from home and abroad, with good reputation.



Wire Diameter 0.45-0.85mm Roll Mesh Welding Machine 0
