Product Details:
|
| Product Name: | Automatic Wire Diameter 0.6-1.3 Roll Mesh Welding Machine | Applicable Industries: | Retail, Other |
|---|---|---|---|
| Wire Diameter: | 0.45-2.6 Mm | Mesh Size: | 1/2x1/2" |
| Life Time: | More Than 10 Years | Voltage: | 380V/50HZ |
| Speed: | 110 Rows/min | Welding Way: | Spot Welding |
| Usage: | Produce Wire Mesh | Exterior Size: | 2500× 1500× 1200 |
| High Light: | 0.6mm Wire Roll Mesh Welding Machine,Oscillating Gripper Roll Mesh Welding Machine,110rows/min electric spot welding machine |
||
1. Product description

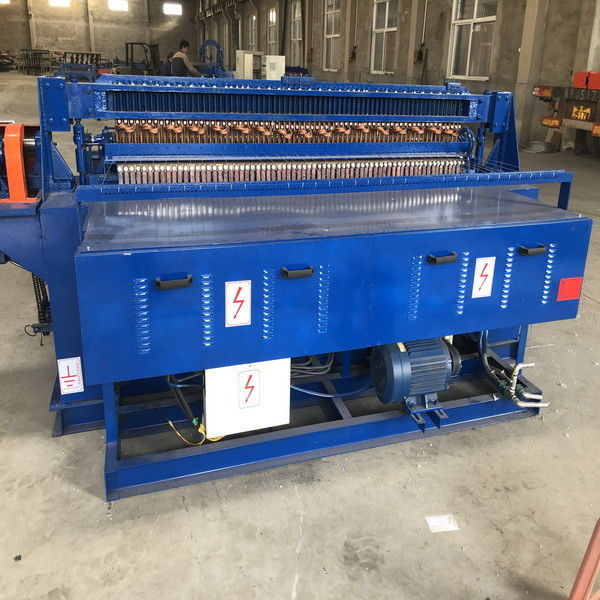

Automatic wire diameter 0.6-1.3 roll mesh welding machine is used for making wire mesh. This kind of wire mesh welding machine is equipped with precise equipment for weft cutting and position, so the length of wefts is identical and regular, it is unnecessary to slice the sides. It has stable function, firm welded point and without welded tracks. A mesh welding system for fine welded mesh providing highest product quality and performance. The cross wires are fed - according to specification - either with single wire or double wire feed with a special transport and oscillating gripper of the respective electrode level.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW5 | 5 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW5 | 5 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW5 | 5 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW5 | 5 feet | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW5 | 5 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic wire diameter 0.6-1.3 roll mesh welding machine can be widely used in material for fences and cages. It also plays a vital, load-bearing role in oven and barbecue grills, refrigerator shelves and racks, shopping carts and dishwasher baskets. Further, it is used in reinforced mesh to lend stability to concrete.
4. Advantages
a. We are the birthplace of wire mesh welding machine, representing the state of art technology,and is the first to use variable-frequency drive control.
b. We use intellectual property transformer with copper core, with superior quality.
c. Electrode lift system to extend electrode life.
d. We are equipped with large production assembly line, annual production capacity is 500sets.
e. Spooling machine, repair table, we use good material to guarantee it is sturdy and stable, easy to operate.
