Product Details:
|
Product Name: | Highway Using Automatic Drive Shaft Welding Machine | Drive Type: | Automatic |
---|---|---|---|
Electrodes: | Single Or Double Row | Mechanical Specifications: | According To Customer Requirement |
Hole Size: | 1''-4''(mm) | Voltage: | 220V/380V/415V/440V |
Welding Speed: | 80-120times/min | Application: | Building&Construction |
Type: | Inverter Frequency | Width: | 1/1.2/1.5/2/2.5m |
High Light: | inverter frequency drive shaft welding machine,automatic drive shaft welding machine,highway automatic wire mesh welding machine |
1. Product description

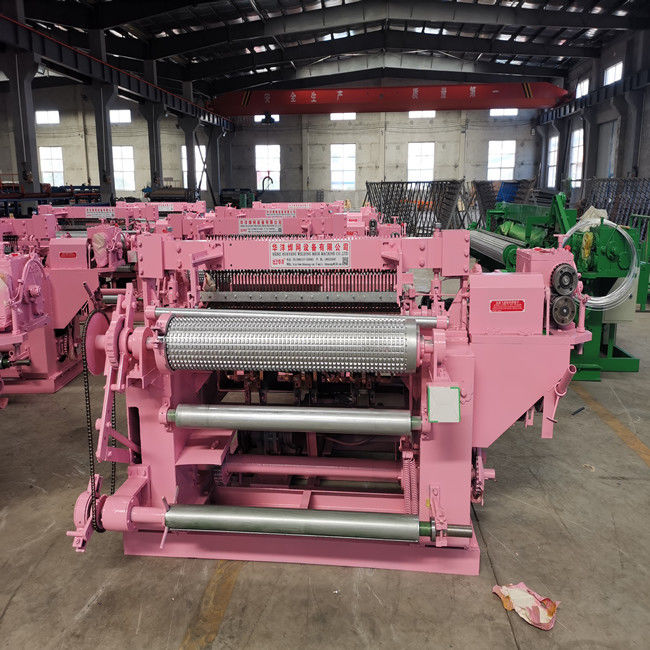

Highway Using Automatic Drive Shaft Welding Machine is used for making wire mesh. This kind of wire mesh welding machine is equipped with precise equipment for weft cutting and position, so the length of wefts is identical and regular, it is unnecessary to slice the sides. It has stable function, firm welded point and without welded tracks.
2. Technical parameter
Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
R- DHW | 6 feet | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
Highway Using Automatic Drive Shaft Welding Machine can be widely used in mining, petroleum, chemistry, food, medicine, machine manufacturing industry. It is used for machine protection for the above industries. The stainless steel wire mesh is even and constant.
4. Advantages
a. High stability ,low noise, automatically straightening, automatically feeding wire .
b. The mesh width is equal to the length of weft wire.
c. It has adjustable middle cutter to cut mesh in different size.
