Product Details:
|
| Product Name: | Bridge Using Automatic Roll Mesh Drive Shaft Welding Machine | Control System: | PLC+touch Screen |
|---|---|---|---|
| Electrodes: | Single Or Double Row | Mechanical Specifications: | According To Customer Requirement |
| Aperture/pitch: | 1/4",1/2" | Voltage: | 220V/380V/415V/440V |
| Transformer: | 70kva/80kva*5/6/7/8 | Application: | Building&Construction |
| Welding Speed: | Max.80-120 Rows/min | Motor: | 4kw; 5.5kw, 7.5kw |
| High Light: | 6ft drive shaft welding machine,bridge drive shaft welding machine,6ft roll mesh welding machine |
||
1. Product description

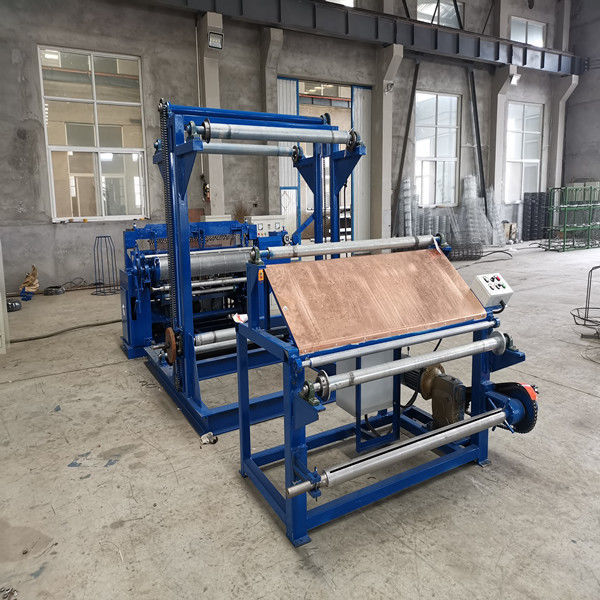

Bridge Using Automatic Roll Mesh Drive Shaft Welding Machine is used for making wire mesh. The machine adopts synchronous control technique, welding time and sub-control welding is composed of PLC program system. Touch screen input panel forms make operation more intellectualized and reasonable. New and high efficiency of welding machine transformer expands welding wire diameter scope.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 6 feet | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
Bridge Using Automatic Roll Mesh Drive Shaft Welding Machine are usded for mesh fence, casting roof mesh in the building.Construction (3d panel covered mesh, floor warmness preserving mesh, seedbed mesh, floor room mesh, animal cages).
4. Advantages
a. We can provide detailed installation videos, manuals, electrical schemes, layouts to help your machine installation.
b. The mesh width is equal to the length of weft wire.
c. It has adjustable middle cutter to cut mesh in different size.
