Product Details:
|
| Product Name: | Galvanized Wire Diameter 1.4-2.6mm Weld Mesh Manufacturing Machine | Trademark: | Huayang |
|---|---|---|---|
| Electrodes: | Single Or Double Row | Rated Power: | 56kva X 3 |
| Loading Port: | Tianjin | Mesh Opening Size: | 1/4''-4'' |
| Overall Dimension: | 3500×1800×1500mm | Power Supply: | Three Phase Four Electric |
| Wire Materails: | Redrawn Wire, Galvanized Wire,Stainless Steel Wire | Core Components: | PLC |
| High Light: | galvanized wire weld mesh manufacturing machine,diameter 1.4mm weld mesh manufacturing machine,diameter 2.6mm weld mesh making machine |
||
1. Product description

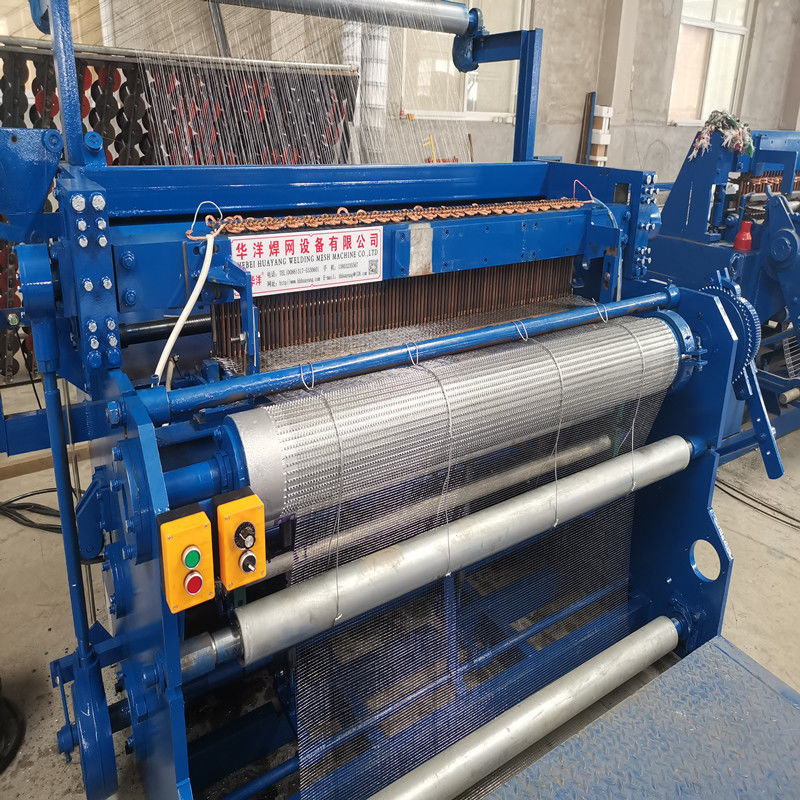

Galvanized Wire Diameter 1.4-2.6mm Weld Mesh Manufacturing Machine is used for making wire mesh. You can use Steel wire coils of drawn wire or wire rod as a continous wire input system for the length wires. Fort he Cross wires you may need a Wire straightening & Cutting Machine which we also provide. You can also adjust the welding electrodes (welding pins) in order to produce different mesh holes.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 6 feet | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
Galvanized Wire Diameter 1.4-2.6mm Weld Mesh Manufacturing Machine is widely used in fencing panels, wire partitions, wire container panels, wire baskets, animal cages, enclosure works, screens, security panels, shelving, signage, stairways/treads, fishing traps and concrete reinforcement.
4. Advantages
a. The mesh length can be set on the counter.
b. The mesh width is equal to the length of weft wire.
c. Raw materials can be galvanized wire, black wire and stainless steel wire.
