Product Details:
|
| Product Name: | Automatic PLC Touch Screen Wire Mesh Welding Machine | Wire Diameter: | 0.45-2.6mm |
|---|---|---|---|
| Mesh Size: | 6.35-100mm | Machine Type: | Roll Forming Machine |
| Condition: | New | Transformer: | Water-cooling Transformer |
| Place Of Origin: | Hebei Province, Huanghua City | Needed Power Supply: | Min.80kva |
| Color: | Customer's Request | Control System: | PLC+touch Screen |
| High Light: | Electrowelding Iron Wire Making Machine,Dia 0.45mm Iron Wire Making Machine,PLC Touch Screen SS Welding Machine |
||
1. Product description

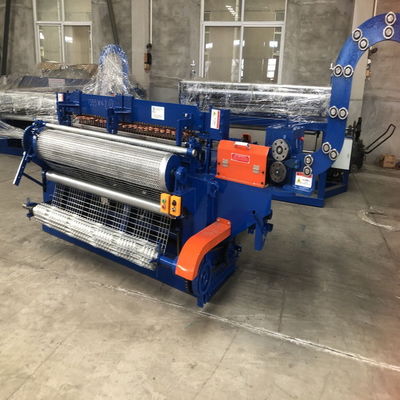

The PLC touch screen fence mesh welding machine is used for making wire mesh. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The PLC touch screen fence mesh welding machine is used to mesh fence, casting roof mesh in the building.Construction (3d panel covered mesh, floor warmness preserving mesh, seedbed mesh, floor room mesh, animal cages).
4. Advantages
a. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.
b. It has advantages of reasonable design, low noise, stable working, easier operation etc.
c. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
d. he welding time and welding current can be adjusted on the control panel to guarantee solid welding.
e. Both longitude wire and weft wire can be fed from wire coils automatically.
