Product Details:
|
| Product Name: | Railway Using Automatic Fence Mesh Welding Machine | Trademark: | Huayang |
|---|---|---|---|
| Mesh Size: | 1/4′′-2.5′′ | Mechanical Specifications: | According To Customer Requirement |
| Wire Diameter: | Φ0.8-Φ2.5(mm) | Power: | 5kw,10kw |
| Cooling System: | Water/Air Cooling | Application: | Building&Construction |
| Overall Dimension: | 3500×1800×1500mm | Welding Speed: | 80-120times/min |
| High Light: | 0.8mm fence mesh welding machine,air cooling fence mesh welding machine,0.8mm automatic wire mesh welding machine |
||
1. Product description

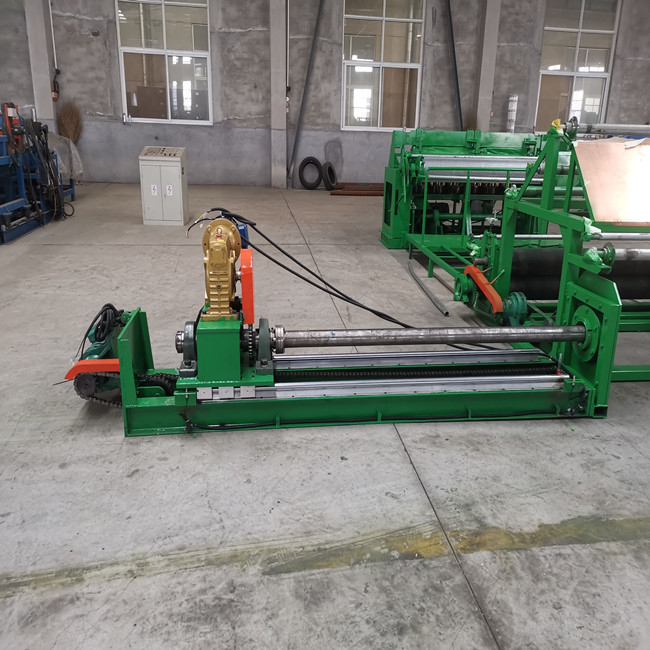

Railway Using Automatic Fence Mesh Welding Machine is used for making wire mesh. The main body frame using thick steel plate and steel, that make the main structure is more fastness,and compact. The weft feeding system, the stepper motor automatically droping the weft automatic, it make the placed more accurately.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 6 feet | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
Railway Using Automatic Fence Mesh Welding MachineWire mesh is the most widely used material for fences and cages. It also plays a vital, load-bearing role in oven and barbecue grills, refrigerator shelves and racks, shopping carts and dishwasher baskets. Further, it is used in reinforced mesh to lend stability to concrete.
4. Advantages
a. Both longitude wire and cross wire can be fed from wire coils automatically.
b. The welding head is made of chromium-zirconium copper, with good electrical conductivity, hard material and abrasion resistance.
c. It installs 8-level adjustable welding transformers to suit different wire diameters.
