Product Details:
|
| Product Name: | Used For Railway Fencing Fence Mesh Welding Machine | Trademark: | Huayang |
|---|---|---|---|
| Electrodes: | Single Or Double Row | Mechanical Specifications: | According To Customer Requirement |
| Pressure Way : | Spring-weighted | Power: | 85KVAX5 Set |
| Welding Way: | Spot Welding | Application: | Building&Construction |
| Nominal Voltage: | 380v 3 Phase Electric 50Hz | ||
| High Light: | 1/2x1 wire mesh welding machine,railway fencing wire mesh welding machine,1/2x1 fence mesh welding machine |
||
1. Product description

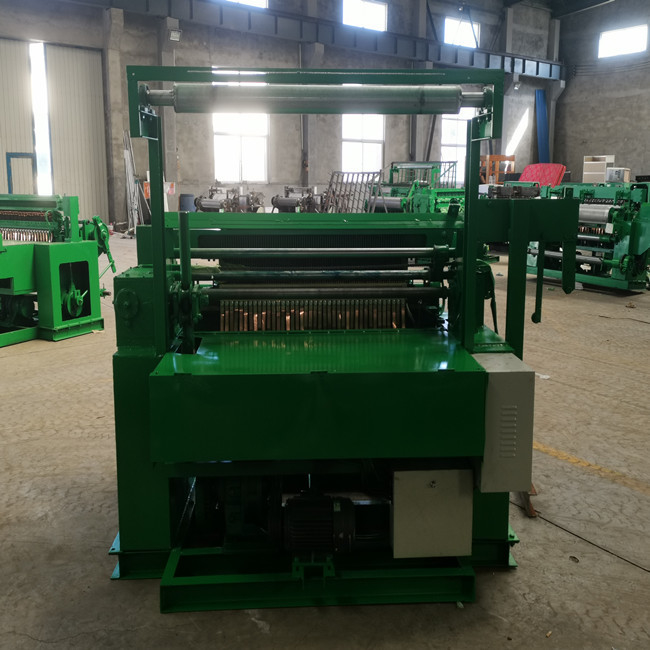

Used For Railway Fencing Fence Mesh Welding Machine is used for making wire mesh. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 6 feet | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
Used For Railway Fencing Fence Mesh Welding Machine is extensively used in the fields of industry , agriculture, farming, breeding, construction, transport, mining and other areas. Machines protective shelter, animal and livestock fence, landscaped fence,retaining Window column, crossing fences, poultry cages, egg baskets, food basket, wastebasket and decoration.
4. Advantages
a. Both longitude wire and cross wire can be fed from wire coils automatically.
b. The welding head is made of chromium-zirconium copper, with good electrical conductivity, hard material and abrasion resistance.
c. High stability ,low noise, automatically straightening, automatically feeding wire .
