Product Details:
|
| Product Name: | Stainless Steel Wire Weld Mesh Manufacturing Machine | Speed: | 100 Rows/min |
|---|---|---|---|
| Machinery Test Report: | Provided | Weight: | 2-5T |
| Color: | Blue, Green, Orange Or Per Request | Life Time: | More Than 10 Years |
| Mechanical Specifications: | According To Customer Requirement | Control System: | PLC Touch Screen |
| Usage: | Produce Wire Mesh | Transformer: | Water-cooling Transformer |
| High Light: | 100rows/Min Weld Mesh Machine,chromised electrodes Weld Mesh Machine,PLC Stainless Steel Automatic Welding Machine |
||
1. Product description

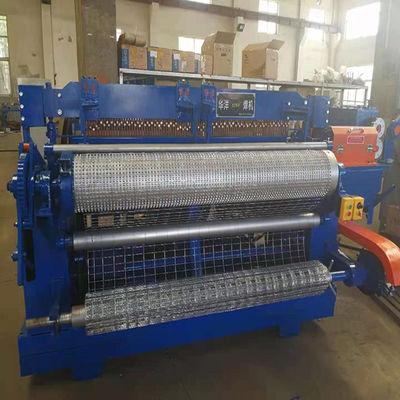

Stainless steel wire weld mesh manufacturing machine is used for making wire mesh. We are offering our customers a brand new type of fully-automatic welding wire mesh machine. Fully automatic welded mesh machine integrate mesh repairing and mesh discharge function together. It saves labour from 2 to 1. By press button, one can manage the welded mesh from wire to mesh roll.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The stainless steel wire weld mesh manufacturing machine is used for roll mesh welding line. Our PLC control automatic roll mesh welding machine allow you to produce welded wire mesh panels or rolls for: concrete reinforcement, cages (chickens, dogs, farms, etc…), wire mesh fences, panels for construction, racks, platforms.
4. Advantages
a. Increased cost-effectiveness and reduced staffing requirements.
b.Patent design for process of thick hard black wire.ne time two or three mesh rolls can be produced.
c. We use variable frequency from Schneider Siemens to control motor for easy maintenance.
d. We use high quality chromised copper electrodes.They can be longer service life.
e. Spooling machine, repair table, we use good material to guarantee it is sturdy and stable, easy to operate.
