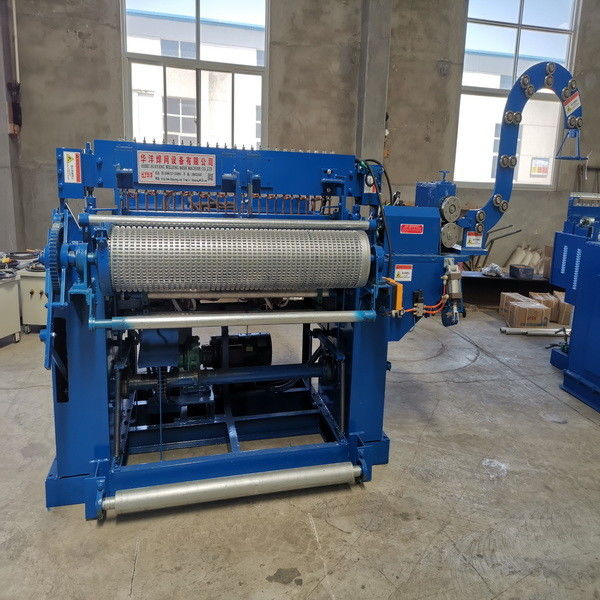

1m Width Reciprocating Drawing Wire Welding Equipment Pneumatic Tightening

1m Width Reciprocating Drawing Wire Welding Equipment Pneumatic Tightening
1m Width Reciprocating Drawing Wire Welding Equipment Pneumatic Tightening

Large Image :  1m Width Reciprocating Drawing Wire Welding Equipment Pneumatic Tightening

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

1m Width Reciprocating Drawing Wire Welding Equipment Pneumatic Tightening

Description
Product Name: Automatic One Meter Width Weld Mesh Manufacturing Machine Mesh Shape: Square
Service: Whole Life Technical Support Wire Materials: GI/SS/BI Wire
Pitch: 1/2", 1", 2", 3", 4" Minimum Mesh Size: 12.7mm
Power: 5kw,10kw Dimension: 1800x1100x1100
Pressure Mold: Spring Pressure Motor: 4kw; 5.5kw;7.5kw
High Light:

1m Width Wire Welding Equipment

,

reciprocating drawing Wire Welding Equipment

,

pneumatic tightening roll Mesh Welding Machine

Automatic One Meter Width Weld Mesh Manufacturing Machine

1. Product description

Automatic one meter width weld mesh manufacturing machine is used for making wire mesh. Servo motor galvanized roll mesh welding machine is used for making wire mesh. The drawing mode: servo motor reciprocating drawing, pneumatic tightening cross wire, to ensure the precise position of the drawing mesh. Each of the welding transformer is 160KVA. And the welding transformer is water cooling. And the welding electrodes are also water cooling.


2. Technical parameter



Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 1m 1/2x1/2 0.45-0.85 90-120 130 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1m 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1m 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1m 1x1 0.45-0.85 90-120 130 1x2, 2x1, 2x2, 2x4
R- DHW 1m 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 1m 1x1 0.8-1.6

90-110

100 1x2, 2x1, 2x2, 2x4
R- DHW 1m 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4


3. Application area

The automatic one meter width weld mesh manufacturing machine can be widely used in agriculture. The automatic one meter width weld mesh manufacturing machine is for industrial wire goods. Leading manufacturers of wire products are using galvanized iron wire green roll mesh welding machine.It is for the flexible and economical manufacturing of wire mesh products.


4. Advantages

a. Patent design for process of thick hard black wire.ne time two or three mesh rolls can be produced.


b. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.

c. To strengthen easy operation of machine,we use proximity switch between upper and lower welding heads,when cross wire doesn't reach,the machine will stop automatically.

d. To increase safety of machine, we protect every transmission part(chain,rotate)with protective cover,and add switch in the electric cabinet.


e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most
suitable machine.
