7ft Width Integrative Weld Mesh Manufacturing Machine Dia 1.6mm

7ft Width Integrative Weld Mesh Manufacturing Machine Dia 1.6mm
7ft Width Integrative Weld Mesh Manufacturing Machine Dia 1.6mm

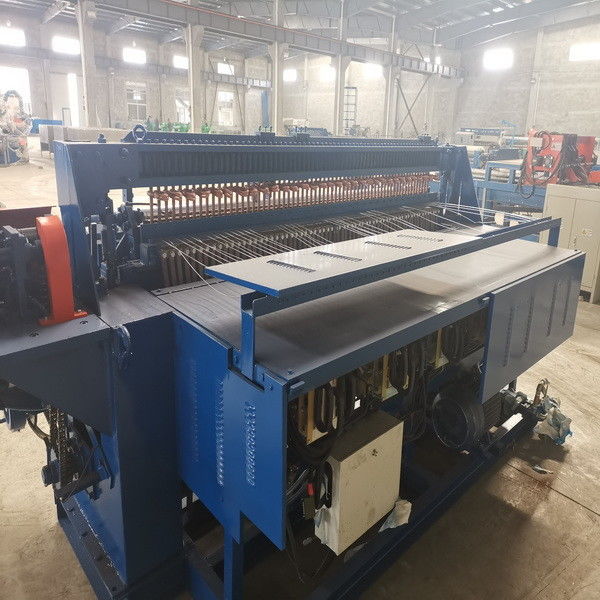

Large Image :  7ft Width Integrative Weld Mesh Manufacturing Machine Dia 1.6mm

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

7ft Width Integrative Weld Mesh Manufacturing Machine Dia 1.6mm

Description
Product Name: Automatic Seven Feet Width Weld Mesh Manufacturing Machine Color: Blue, Green, Orange Or Per Request
Mesh Shape: Square Mesh Type: In Roll
Mesh Size: 1/4′′-2.5′′ Production Capacity: 30-100rolls/8hours
Pitch: 1/2", 1", 2", 3", 4" Control System: PLC+touch Screen
Applicable Industries: Retail, Other Core Components: Engine, Gearbox, Motor, Gear
High Light:

7ft Width Weld Mesh Manufacturing Machine

,

integrative Weld Mesh Manufacturing Machine

,

Dia 1.6mm automatic welding equipment

Automatic Seven Feet Width Weld Mesh Manufacturing Machine

1. Product description



The automatic seven feet width weld mesh manufacturing machine is used for making wire mesh. Professional independent production workshop, dozens of older skilled workers for production and commissioning of production machinery, to ensure the normal operation of the machine.Variety of specifications can be customized according to the requirements, including the wire diameter, wire width, hole size.



2. Technical parameter



Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 7feet 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 7feet 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 7feet 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 7feet 1x1 0.8-1.6

90-110

100 1x2, 2x1, 2x2, 2x4
R- DHW 7feet 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4



3. Application area



The automatic seven feet width weld mesh manufacturing machine is extensively used in mining, petroleum, chemistry, food, medicine, machine manufacturing industry. It is used for machine protection for the above industries. The stainless steel wire mesh is even and constant. Welding spot is sturdy. The machinery property is stable, anti-corrosion perfomance is good.



4. Advantages



a. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.



b. Line wire vertical straightening system to provide high quality.



c. Increased cost-effectiveness and reduced staffing requirements.



d. Welding pressure steplessly adjust to apply multiple wire diameter.



e. Welding using a new type of high efficient welding net transformer.
