Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

Huayang Servo Motors Automatic Mesh Welding Machine , 10kw Mesh Wire Making Machine

Description
Product Name: Servo Motor Galvanized Weld Mesh Manufacturing Machine Speed: 100 Rows/min
Key Selling Points: Servo Motor Power: 5kw,10kw
Rated Capacity: 120kva Machine Width: 2000-4500mm
Mechanical Specifications: According To Customer Requirement HS Code: 84633000
Style: Horizontal
High Light:

Servo Motors Automatic Mesh Welding Machine

,

servo motors mesh wire making machine

,

10kw Mesh Wire Making Machine

Servo Motor Galvanized Weld Mesh Manufacturing Machine

1. Product description

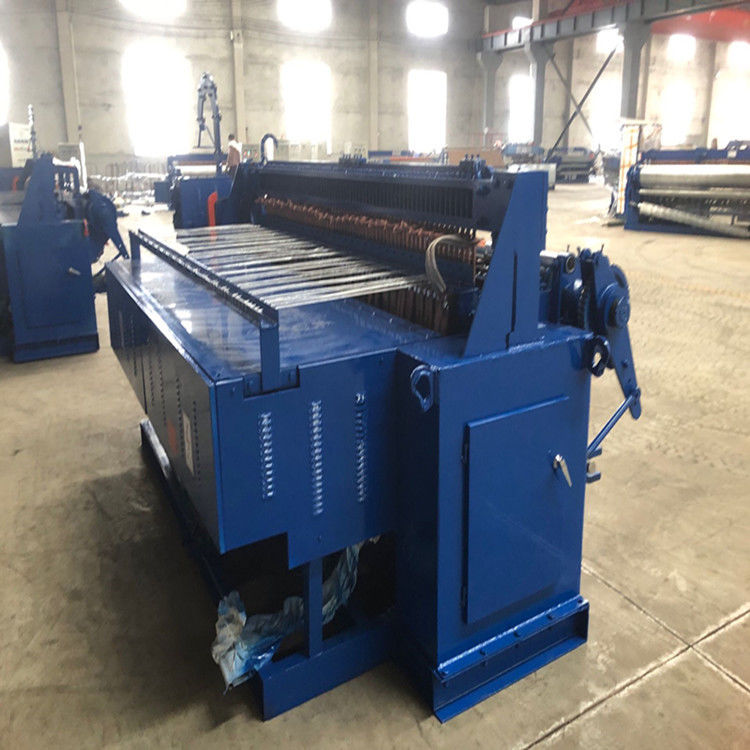

Servo motor galvanized weld mesh manufacturing machine is used for making wire mesh. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding. Spare parts: wire shelf, wire axis machine, mesh repairing machine, welded pot two pcs, pressure spring two pcs, strong magent.


2. Technical parameter



Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 1-2.5m 1/2x1/2 0.45-0.85 90-120 130 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 1-2.5m 1x1 0.45-0.85 90-120 130 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 0.8-1.6

90-110

100 1x2, 2x1, 2x2, 2x4
R- DHW 1-2.5m 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4


3. Application area

The servo motor galvanized weld mesh manufacturing machine is used for animal cages, enclosure works, screens, security panels, shelving, signage, stairways/treads, fishing traps and concrete reinforcement.


4. Advantages

a. The feeding of weft wire adopts the patent technology of wire feeding wheel, make the feeding of weft wire more accurate and avoid the problem of leak wire or double wire.


b. Both longitude wire and weft wire can be fed from wire coils automatically.


c. Our machine can automatically dischare wire mesh.


d. The mesh length can be set on the counter.

e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most suitable machine.
