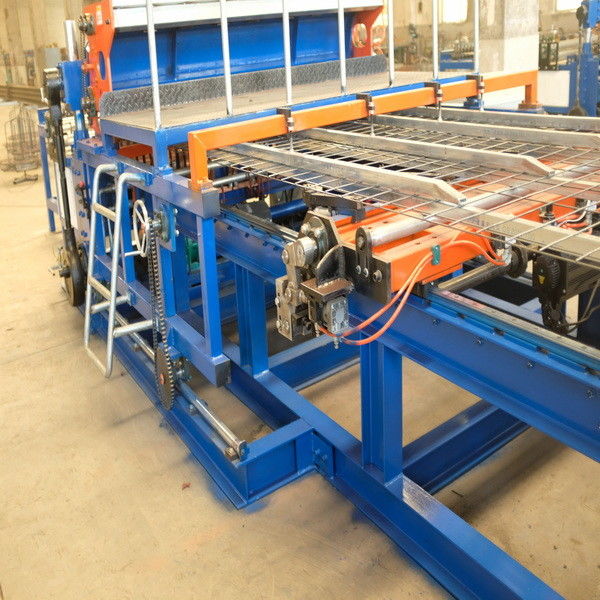

7.5KW Wharf Wire Mesh Making Machine 60times/Min Galvanized

7.5KW Wharf Wire Mesh Making Machine 60times/Min Galvanized
7.5KW Wharf Wire Mesh Making Machine 60times/Min Galvanized

Large Image :  7.5KW Wharf Wire Mesh Making Machine 60times/Min Galvanized

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

7.5KW Wharf Wire Mesh Making Machine 60times/Min Galvanized

Description
Product Name: Automatic Electric Galvanized Diamond Mesh Wire Making Machine Nominal Power: 150KVA X 5
Trademark: Huayang Feature: Automatic Wire Feeding
Overall Dimension: 3400x1900x1500mm Wire Diameter: 3.0-8.0mm
Mesh Size: 100-300mm Panel Mesh Dimension: 4000x2500mm
Motor Power: 7.5KW Nominal Voltage: 380v Or Customized
High Light:

7.5KW Wire Mesh Making Machine

,

wharf Wire Mesh Making Machine

,

60times/min automatic beam welding machine

Automatic Electric Galvanized Diamond Mesh Wire Making Machine

1. Product description

Automatic electric galvanized diamond mesh wire making machine is used for making wire mesh. NC fence welding machine: 3-6mm pair wire diameter,CNC wire rod feed pneumatic welded wire mesh machine.Indirect welding technology, once pressed graded welding, welding time and separate welding are composed of PLC programming system for digital input panel touch screen or buttons are two operating A more intelligent and reasonable.For high-speed rails.Welding wire diameter:3.0-6.0mm, welded mesh:50x50-300x300mm, welding width:1500,2000,2200,2500mm.Welding speed: 60times/min.Rated voltage:380v 3-phase 50HZ. Dimensions:26000x5000x1800. Diameter wire-Pansi.Weft-plate wire or straightened wire.

2. Technical parameter



Model HY-DHW-1500 HY-DHW-2000 HY-DHW-2500 HY-DHW-2800 HY-DHW-3300
Weld width(mm) 1500 2000 2500 2800 3300
Meshi trip(mm) Single trip 3000 and no limit on return
Std trans.spacing >=25mm-stepless adjustable
Std long.spacing >=50mm, and progressive increase by 50 >=100mm, and increase by 100
Std weld spots 31 41 51 27 32
Wire diameter(mm) 3.0-6.0 3.0-6.0 3.0-6.0 5.0-12.0 5.0-12.0
Weld speed(times/min 50-70 40-60 40-60 40-60 40-60
Trans material Straight bar/rod Straight bar
Long material Straight bar/rod
Control mode PLC programming servo motor stepper
Mesh diagonal error <=2
Mesh overall error <=2
Air pressure >=0.7
Weld material Cold drawn wire, galvanized wire, cold rolled ribbed steel


3. Application area

The automatic galvanized wire diamond mesh wire making machine can be used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.

4. Advantages

a. Equipment to strengthen the damping process, effectively reducing noise.

b. To produce mesh by coiled wire continuously.

c. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.

d. Reinforced length delivery process automatic control.


e. The machine line automatic degree can be according to request. For the economical type, line wire and cross wire are pre straightened and cut to length. We are capable to produce fully automatic machine.

7.5KW Wharf Wire Mesh Making Machine 60times/Min Galvanized 0
