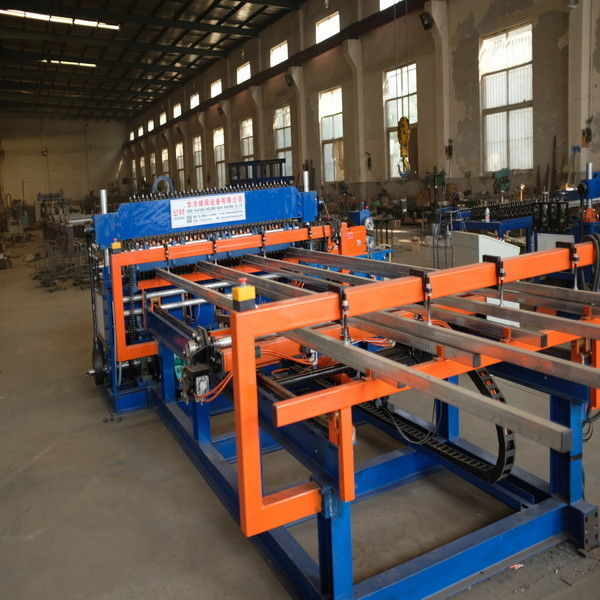

Huayang CNC Diamond Mesh Wire Making Machine Welding Manipulator Dia 8.0mm

Huayang CNC Diamond Mesh Wire Making Machine Welding Manipulator Dia 8.0mm
Huayang CNC Diamond Mesh Wire Making Machine Welding Manipulator Dia 8.0mm

Large Image :  Huayang CNC Diamond Mesh Wire Making Machine Welding Manipulator Dia 8.0mm

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

Huayang CNC Diamond Mesh Wire Making Machine Welding Manipulator Dia 8.0mm

Description
Product Name: Automatic Black Wire Diamond Mesh Wire Making Machine Trademark: Huayang
Feature: Automatic Wire Feeding Overall Dimension: 3400x1900x1500mm
Wire Diameter: 3.0-8.0mm Mesh Size: 100-300mm
Nominal Voltage: 380v Or Customized Occupied Area: 7500x3400mm
Weight Of Machine: 4800kg Machine Type: Welding Manipulator
High Light:

Huayang Diamond Mesh Wire Making Machine

,

CNC Diamond Mesh Wire Making Machine

,

Dia 8.0mm roll Mesh Welding Machine

Automatic Black Wire Diamond Mesh Wire Making Machine

1. Product description

Automatic black wire diamond mesh wire making machine is used for making wire mesh. CNC Pneumatic-steel mesh welding machine:the synchronous control technique, welding time and separate welding are industrial machine control system management, control software is based on the windows operating system,man-machine interface, operation more intelligent and humane.Diameter wire using wire coil/straight feed,continuous feed, straightning,motor control,the mesh size is more precise than the stepper motor control.It can mesh with a wire diameter direction appear on different size mesh.The greatest feature of the aircraft broke the plate wire fence films can not be used for continous production of the situation and change the wire diameter varies due to replace each of the contact pressure spring chores,minor changes in cylinder pressure knob, you can change the solder joint stress.

2. Technical parameter


ModelHY-DHW-1500HY-DHW-2000HY-DHW-2500HY-DHW-2800HY-DHW-3300
Weld width(mm)15002000250028003300
Meshi trip(mm)Single trip 3000 and no limit on return
Std trans.spacing>=25mm-stepless adjustable
Std long.spacing>=50mm, and progressive increase by 50>=100mm, and increase by 100
Std weld spots3141512732
Wire diameter(mm)3.0-6.03.0-6.03.0-6.05.0-12.05.0-12.0
Weld speed(times/min50-7040-6040-6040-6040-60
Trans materialStraight bar/rodStraight bar
Long materialStraight bar/rod
Control modePLC programming servo motor stepper
Mesh diagonal error<=2
Mesh overall error<=2
Air pressure>=0.7
Weld materialCold drawn wire, galvanized wire, cold rolled ribbed steel


3. Application area

The automatic black wire diamond mesh wire making machine can be used in Prevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry.

4. Advantages

a. Easy handling, improve production efficiency and reduce labor costs.

b.
Transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials.

c. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.

d.
Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.

e. The machine line automatic degree can be according to request. For the economical type, line wire and cross wire are pre straightened and cut to length. We are capable to produce fully automatic machine.
