Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

51pcs Solid Pin Fox Cages Automatic Welding Equipment , PLC Weld Mesh Making Machine

Description
Product Name: Blue Galvanized Wire Diamond Mesh Wire Making Machine Mesh Size: Adjustable
Trademark: Huayang Feature: Automatic Wire Feeding
Color Of Machine: As Your Request Wire Diameter: 3.0-8.0mm
Welding Material: Hot-rolled Wire, Micro-alloyed, Ribbed Solid Pin: 31-51 Pcs
Welding Speed: 30-70 Times/min Nominal Voltage: 380v Or Customized
High Light:

51pcs Solid Pin Automatic Welding Equipment

,

fox cages Automatic Welding Equipment

,

PLC Weld Mesh Making Machine

Blue Galvanized Wire Diamond Mesh Wire Making Machine

1. Product description

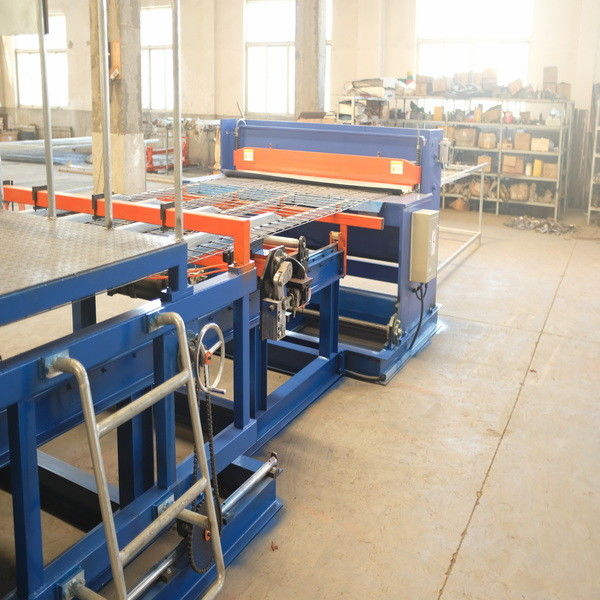

Blue galvanized wire diamond mesh wire making machine is used for making wire mesh. Blue galvanized wire diamond mesh wire making machine is also called fence mesh welding line, security fence machine, anti-climb fence welding machine,and fence panel machine.

2. Technical parameter



Model HY-DHW-1500 HY-DHW-2000 HY-DHW-2500 HY-DHW-2800 HY-DHW-3300
Weld width(mm) 1500 2000 2500 2800 3300
Meshi trip(mm) Single trip 3000 and no limit on return
Std trans.spacing >=25mm-stepless adjustable
Std long.spacing >=50mm, and progressive increase by 50 >=100mm, and increase by 100
Std weld spots 31 41 51 27 32
Wire diameter(mm) 3.0-6.0 3.0-6.0 3.0-6.0 5.0-12.0 5.0-12.0
Weld speed(times/min 50-70 40-60 40-60 40-60 40-60
Trans material Straight bar/rod Straight bar
Long material Straight bar/rod
Control mode PLC programming servo motor stepper
Mesh diagonal error <=2
Mesh overall error <=2
Air pressure >=0.7
Weld material Cold drawn wire, galvanized wire, cold rolled ribbed steel


3. Application area

The blue galvanized wire diamond mesh wire making machine can be adjusted within a certain range mainly used for farming(cages,rabbit cage,fox cage,etc.)

4. Advantages

a. All the pneumatic components used are with world famous brand. For European customers, it is very easy to get the parts locally.

b. Transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials.

c. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.

d. The welding wire diameter is able to be made to orders. The range of our mesh welding machine is from 0.3mm to 12mm. Material can be stainless steel wire, galvanized wire, plain steel bar, cold rolled rebar, hot rolled rebar.

e. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.


51pcs Solid Pin Fox Cages Automatic Welding Equipment , PLC Weld Mesh Making Machine 0
