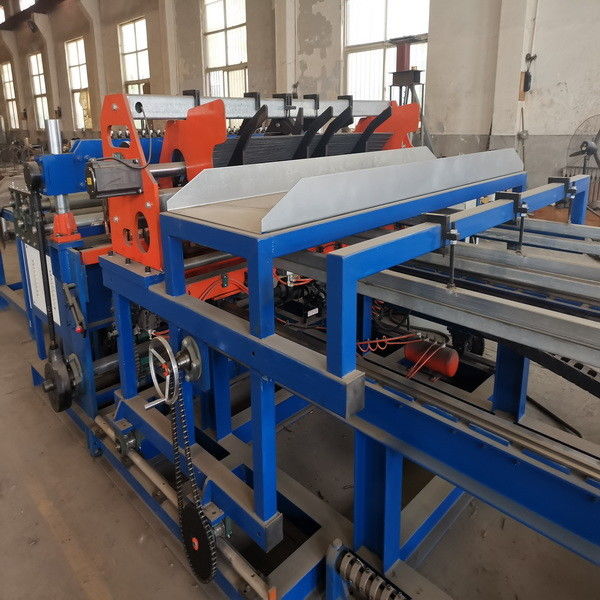

PLC Dia 8mm Automatic Wire Mesh Welding Machine GI Wire Stainless Steel

PLC Dia 8mm Automatic Wire Mesh Welding Machine GI Wire Stainless Steel
PLC Dia 8mm Automatic Wire Mesh Welding Machine GI Wire Stainless Steel

Large Image :  PLC Dia 8mm Automatic Wire Mesh Welding Machine GI Wire Stainless Steel

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

PLC Dia 8mm Automatic Wire Mesh Welding Machine GI Wire Stainless Steel

Description
Product Name: PLC Control Automatic Diamond Mesh Wire Making Machine Trademark: Huayang
Feature: Automatic Wire Feeding Wire Diameter: 3.0-8.0mm
After-sales Service: Free Spare Parts, Field Installation, Commissioning And Training Nominal Voltage: 380v Or Customized
Wire: GI, SS, Black Wire, Rebar Weight Of Machine: 4800kg
Dimensions: 5480*3160*1700 Mm Rated Duty Cycle: 10%
High Light:

PLC Automatic Wire Mesh Welding Machine

,

Dia 8mm Automatic Wire Mesh Welding Machine

,

GI Wire stainless steel welding equipment

PLC Control Automatic Diamond Mesh Wire Making Machine

1. Product description

PLC control automatic diamond mesh wire making machine is used for making wire mesh. The welding electrode is made of high-quality Chromium Zirconium copper material, which has a long service life and reduces the production cost. Line wire feeding mode: The line wire adopts manual feeding and automatic feeding function. Accurate position saves welding waiting time.


2. Technical parameter



Model HY-DHW-1500 HY-DHW-2000 HY-DHW-2500 HY-DHW-2800 HY-DHW-3300
Weld width(mm) 1500 2000 2500 2800 3300
Meshi trip(mm) Single trip 3000 and no limit on return
Std trans.spacing >=25mm-stepless adjustable
Std long.spacing >=50mm, and progressive increase by 50 >=100mm, and increase by 100
Std weld spots 31 41 51 27 32
Wire diameter(mm) 3.0-6.0 3.0-6.0 3.0-6.0 5.0-12.0 5.0-12.0
Weld speed(times/min 50-70 40-60 40-60 40-60 40-60
Trans material Straight bar/rod Straight bar
Long material Straight bar/rod
Control mode PLC programming servo motor stepper
Mesh diagonal error <=2
Mesh overall error <=2
Air pressure >=0.7
Weld material Cold drawn wire, galvanized wire, cold rolled ribbed steel


3. Application area

The PLC control automatic diamond mesh wire making machine can be used in mesh fence, casting roof mesh in the building, Construction ( 3d panel covered mesh, floor warmness preserving mesh, seedbed mesh, floor room mesh,animal cages).



4. Advantages

a. We choose well known brand from home and abroad to ensure the entirety steel property to avoid any transformation, transposition happen during transportation, installation process as to affect the precision of the machine.

b. To produce mesh by coiled wire continuously.

c. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.

d. To strengthen easy operation of machine, we use proximity switch between upper and lower welding heads, when cross wire doesn’t reach, the machine will stop automatically.

e. The machine line automatic degree can be according to request. For the economical type, line wire and cross wire are pre straightened and cut to length. We are capable to produce fully automatic machine.
