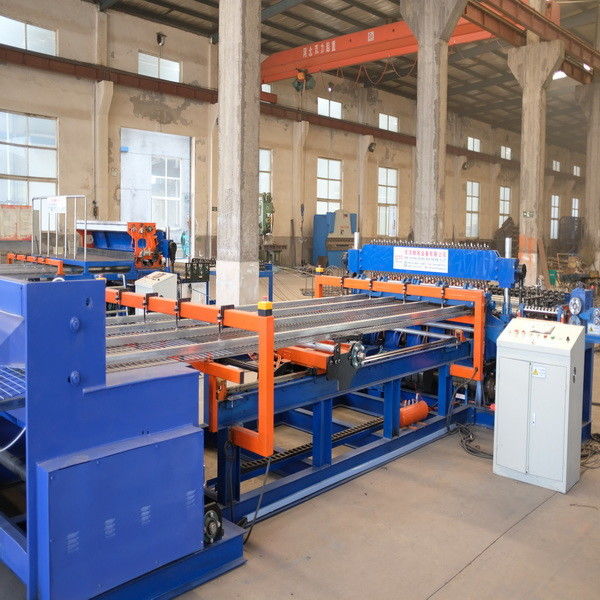

Huayang 75times/min Diamond Mesh Wire Making Machine PLC Touch Screen

Huayang 75times/min Diamond Mesh Wire Making Machine PLC Touch Screen
Huayang 75times/min Diamond Mesh Wire Making Machine PLC Touch Screen

Large Image :  Huayang 75times/min Diamond Mesh Wire Making Machine PLC Touch Screen

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

Huayang 75times/min Diamond Mesh Wire Making Machine PLC Touch Screen

Description
Product Name: Automatic PLC Touch Screen Diamond Mesh Wire Making Machine Trademark: Huayang
Feature: Automatic Wire Feeding Wire Diameter: 3.0-8.0mm
After-sales Service: Free Spare Parts, Field Installation, Commissioning And Training Voltage: 380V/50Hz, 220V/380V/415V/440V
ApertureAperture: 50x25; 300x300mm Wire Diameter: 2.5-6.0mm
Width: Max 2.5m Speed: Max 75 Times/minute
High Light:

75times/Min Diamond Mesh Wire Making Machine

,

Huayang Diamond Mesh Wire Making Machine

,

PLC mesh manufacturing machine

Automatic PLC Touch Screen Diamond Mesh Wire Making Machine

1. Product description

Automatic PLC touch screen diamond mesh wire making machine is used for making wire mesh. Cross wire feeding mode: cross wire hopper drop wire automatically blanking weft feeding, blanking position is accurate. The cross wire hopper can load max 1500KGS rebar. Save labor cost.The cross wire is controlled by the stepping motor. The stepping motor is also controlled by the control cabinet.

2. Technical parameter



Model HY-DHW-1500 HY-DHW-2000 HY-DHW-2500 HY-DHW-2800 HY-DHW-3300
Weld width(mm) 1500 2000 2500 2800 3300
Meshi trip(mm) Single trip 3000 and no limit on return
Std trans.spacing >=25mm-stepless adjustable
Std long.spacing >=50mm, and progressive increase by 50 >=100mm, and increase by 100
Std weld spots 31 41 51 27 32
Wire diameter(mm) 3.0-6.0 3.0-6.0 3.0-6.0 5.0-12.0 5.0-12.0
Weld speed(times/min 50-70 40-60 40-60 40-60 40-60
Trans material Straight bar/rod Straight bar
Long material Straight bar/rod
Control mode PLC programming servo motor stepper
Mesh diagonal error <=2
Mesh overall error <=2
Air pressure >=0.7
Weld material Cold drawn wire, galvanized wire, cold rolled ribbed steel


3. Application area

The automatic PLC touch screen diamond mesh wire making machine can be widely used in mining, petroleum, chemistry, food, medicine, machine manufacturing industry. It is used for machine protection for the above industries.



4. Advantages

a. Easy handling, improve production efficiency and reduce labor costs.

b. To increase safety of machine, we protect every transmission part (chain, rotate) with protective cover; and add switch in the electric cabinet, so when there is any wrong operation, the cabinet and machine will immediately cut off to avoid any electric shock.

c. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.

d. Guarantee the welded wire mesh machine for one year.

e. The wire mesh welding machine welding power comes from the cylinders. It's easy to control the welding pressure .

Huayang 75times/min Diamond Mesh Wire Making Machine PLC Touch Screen 0
