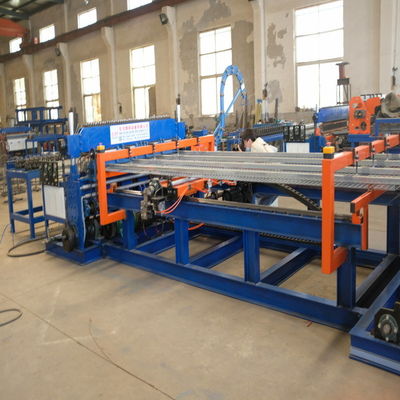

Wire Diar 5mm Anticorrosion Automatic Welding Machine , 100A Welded Wire Mesh Machine

Wire Diar 5mm Anticorrosion Automatic Welding Machine , 100A Welded Wire Mesh Machine
Wire Diar 5mm Anticorrosion Automatic Welding Machine , 100A Welded Wire Mesh Machine

Large Image :  Wire Diar 5mm Anticorrosion Automatic Welding Machine , 100A Welded Wire Mesh Machine

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

Wire Diar 5mm Anticorrosion Automatic Welding Machine , 100A Welded Wire Mesh Machine

Description
Product Name: Automatic Wire Diameter 5mm Diamond Mesh Wire Making Machine Mesh Size: Adjustable
Color: Yellow & Blue Feature: Automatic Wire Feeding
Current: 70-100A Line Wire Space: >=50mm
Cross Wire Space: >=25mm Solid Pin: 31-51 Pcs
Control: PLC Automatic Certification: CE
High Light:

Wire Diar 5mm Automatic Welding Machine

,

Anticorrosion Automatic Welding Machine

,

100A Welded Wire Mesh Machine

Automatic Wire Diameter 5mm Diamond Mesh Wire Making Machine

1. Product description

Automatic wire diameter 5mm diamond mesh wire making machine is used for making wire mesh. Line wires (also called long wires) are laid out on a pattern board to set the panel width spacing. Cross wires are fed into a hopper, and are programmed to be dropped one at a time onto the line wires. Then, the cross wires are resistance welded into place setting the panel length spacing. The panel advances after the weld and the process starts over again.

2. Technical parameter



Model HY-DHW-1500 HY-DHW-2000 HY-DHW-2500 HY-DHW-2800 HY-DHW-3300
Weld width(mm) 1500 2000 2500 2800 3300
Meshi trip(mm) Single trip 3000 and no limit on return
Std trans.spacing >=25mm-stepless adjustable
Std long.spacing >=50mm, and progressive increase by 50 >=100mm, and increase by 100
Std weld spots 31 41 51 27 32
Wire diameter(mm) 3.0-6.0 3.0-6.0 3.0-6.0 5.0-12.0 5.0-12.0
Weld speed(times/min 50-70 40-60 40-60 40-60 40-60
Trans material Straight bar/rod Straight bar
Long material Straight bar/rod
Control mode PLC programming servo motor stepper
Mesh diagonal error <=2
Mesh overall error <=2
Air pressure >=0.7
Weld material Cold drawn wire, galvanized wire, cold rolled ribbed steel


3. Application area

The automatic wire diameter 5mm diamond mesh wire making machine can be suitable for interior decoration, arts and crafts, anticorrosion, poultry breeding and other industries.


4. Advantages

a. Electrodes with cooling water, good for wire 3-8mm.

b. With our company's patented threading device, artificial threading more convenient, save time and effort.

c. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.

d. This machine is compact in structure, easily to operate and with fully functions. It has lower cost, high efficiency, reliable working, low energy consumption advantages.

e. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.
