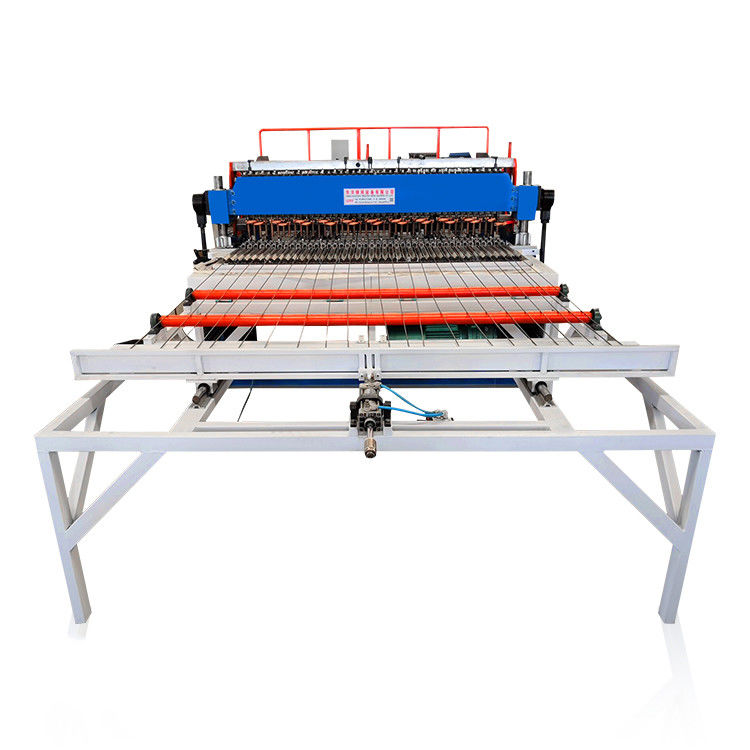

40rows/Min Reinforcing Pneumatic Spot Welding Machine Servo Motor

40rows/Min Reinforcing Pneumatic Spot Welding Machine Servo Motor
40rows/Min Reinforcing Pneumatic Spot Welding Machine Servo Motor

Large Image :  40rows/Min Reinforcing Pneumatic Spot Welding Machine Servo Motor

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

40rows/Min Reinforcing Pneumatic Spot Welding Machine Servo Motor

Description
Product Name: Servo Motor Reinforcing Pneumatic Spot Welding Machine Condition: New
Current: 100A Welding Speed: 40-70 Rows Per Minute
Material: Galvanized Wire, Cold Roberts, Cold Rolled Ribbed Steel Mesh Size: 100-300mm
Panel Mesh Dimension: 4000x2500mm Usage: Construction And Fence Wire Mesh
Color: Grey,blue And Orange Control System: Synchronous & PLC Control Technique
High Light:

40rows/min Pneumatic Spot Welding Machine

,

Reinforcing Pneumatic Spot Welding Machine

,

servo galvanized reinforcing mesh welding machine

Servo Motor Reinforcing Pneumatic Spot Welding Machine

1. Product description

Servo motor reinforcing pneumatic spot welding machine is used for making wire mesh. Cross wire feeding mode: cross wire hopper drop wire automatically blanking weft feeding, blanking position is accurate. The cross wire hopper can load max 1500KGS rebar. Save labor cost.The cross wire is controlled by the stepping motor. The stepping motor is also controlled by the control cabinet.

2. Technical parameter



Model HY-DHW-1500 HY-DHW-2000 HY-DHW-2500 HY-DHW-2800 HY-DHW-3300
Weld width(mm) 1500 2000 2500 2800 3300
Meshi trip(mm) Single trip 3000 and no limit on return
Std trans.spacing >=25mm-stepless adjustable
Std long.spacing >=50mm, and progressive increase by 50 >=100mm, and increase by 100
Std weld spots 31 41 51 27 32
Wire diameter(mm) 3.0-6.0 3.0-6.0 3.0-6.0 5.0-12.0 5.0-12.0
Weld speed(times/min 50-70 40-60 40-60 40-60 40-60
Trans material Straight bar/rod Straight bar
Long material Straight bar/rod
Control mode PLC programming servo motor stepper
Mesh diagonal error <=2
Mesh overall error <=2
Air pressure >=0.7
Weld material Cold drawn wire, galvanized wire, cold rolled ribbed steel


3. Application area

The servo motor reinforcing pneumatic spot welding machine can be  widely used in construction,protective screening mesh and mine timbering.


4. Advantages

a. The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto.


b. Servo motor control, mesh size will be more precise than the stepper motor.

c. In the same panel mesh, different size of mesh can be made on the line wire direction.

d. The welding wire diameter is able to be made to orders. The range of our mesh welding machine is from 0.3mm to 12mm. Material can be stainless steel wire, galvanized wire, plain steel bar, cold rolled rebar, hot rolled rebar.

e. The wire mesh welding machine welding power comes from the cylinders. It's easy to control the welding pressure .


40rows/Min Reinforcing Pneumatic Spot Welding Machine Servo Motor 0
