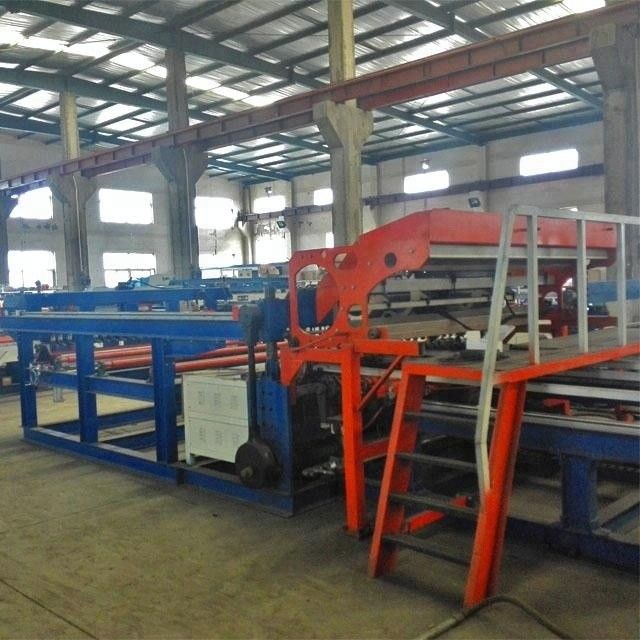

Dia 6mm Compaction Electric Spot Welding Machine , 3000mm Width Inverter Spot Welder

Dia 6mm Compaction Electric Spot Welding Machine , 3000mm Width Inverter Spot Welder
Dia 6mm Compaction Electric Spot Welding Machine , 3000mm Width Inverter Spot Welder

Large Image :  Dia 6mm Compaction Electric Spot Welding Machine , 3000mm Width Inverter Spot Welder

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

Dia 6mm Compaction Electric Spot Welding Machine , 3000mm Width Inverter Spot Welder

Description
Product Name: Galvanized Wire Diameter Reinforcing 6mm Pneumatic Spot Welding Machine Feature: Automatic Wire Feeding
Color Of Machine: As Your Request Place Of Origin: Hebei, China
Function: Fence Panel Wire Diameter: 1-3mm
Application: To Form Wire Mesh Sheets Width Of Mesh: 1500-3000mm
The Control System: CNC The Product Model: Fence Welded Mesh Machine
High Light:

Dia 6mm Electric Spot Welding Machine

,

compaction Electric Spot Welding Machine

,

3000mm Width Inverter Spot Welder

Galvanized Wire Diameter Reinforcing 6mm Pneumatic Spot Welding Machine

1. Product description

Galvanized wire diameter reinforcing 6mm pneumatic spot welding machine is used for making panel mesh. The welded mesh panel welding equipment adopts one-step compaction and sub-welding. The biggest advantage is that more than 30 mesh sizes between warp and weft can appear on the same mesh surface. A new type of high efficiency water-cooled welding transformer is used to expand the welding wire diameter. The welded mesh panel welding equipment need power transformer at least 200KVA to supply machine working.And the distance from the welded mesh panel welding equipment to the power transformer should be within 80m.


2. Technical parameter



Model HY-DHW-1500 HY-DHW-2000 HY-DHW-2500 HY-DHW-2800 HY-DHW-3300
Weld width(mm) 1500 2000 2500 2800 3300
Meshi trip(mm) Single trip 3000 and no limit on return
Std trans.spacing >=25mm-stepless adjustable
Std long.spacing >=50mm, and progressive increase by 50 >=100mm, and increase by 100
Std weld spots 31 41 51 27 32
Wire diameter(mm) 3.0-6.0 3.0-6.0 3.0-6.0 5.0-12.0 5.0-12.0
Weld speed(times/min 50-70 40-60 40-60 40-60 40-60
Trans material Straight bar/rod Straight bar
Long material Straight bar/rod
Control mode PLC programming servo motor stepper
Mesh diagonal error <=2
Mesh overall error <=2
Air pressure >=0.7
Weld material Cold drawn wire, galvanized wire, cold rolled ribbed steel


3. Application area

The galvanized wire diameter reinforcing 6mm pneumatic spot welding machine can be used in constructions. Whether for reinforcement of concrete in the foundations or for thinner construction panels inside the houses.

4. Advantages

a. This machine is compact in structure, easily to operate and with fully functions. It has lower cost, high efficiency, reliable working, low energy consumption advantages.

b. The weft wire of wire mesh welding machine feeding from the multi hopper which capacity is more over ten times than the traditional hopper.

c. We can design the welded wire mesh machine as your requirement.

d. The new wire mesh welding machine added the bear wire net and carry equipment that makes the working more convenience .

e. The welding part of wire mesh welding machine is used the springiness input wire trunking that makes the welding copper use for long time.
