Product Details:
|
| Product Name: | Wire Diameter 4mm CNC Spot Welding Machine | Feature: | Automatic Wire Feeding |
|---|---|---|---|
| Wire Diameter: | 1-3mm | The Control System: | CNC |
| Key Selling Points: | High Rigidity | Color Of Machine: | As Your Request |
| Cross Wire Space: | 50-200mm | Rated Capacity: | 125kvax5 |
| Trademark: | Huayang | Type Of Production: | Panel |
| High Light: | Huayang Inverter Spot Welding Machine,Auto Arranging Inverter Spot Welding Machine,Wire Dia 4mm Precision Spot Welder |
||
1. Product description

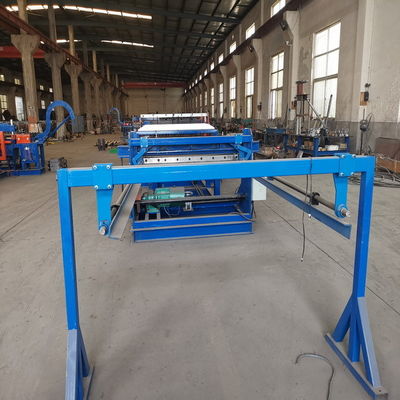

Wire diameter 4mm CNC spot welding machine is used for making panel mesh. Main unit: Welded with thick steel sheet and section steel, strong and concise.Welding electronic control system: PLC digital system, one time pressing, separate welding, precise control and stable function. Wire laying devices: Auto weft wire feeding device, easy to handle, high welding speed.Wire mesh opening setting: PLC digital control.Weft wire arranging: Auto arranging. Inner transformer: High efficient welding transformer, with 8 grade adjustment.
2. Technical parameter
| Model | HY-DHW-1500 | HY-DHW-2000 | HY-DHW-2500 | HY-DHW-2800 | HY-DHW-3300 |
| Weld width(mm) | 1500 | 2000 | 2500 | 2800 | 3300 |
| Meshi trip(mm) | Single trip 3000 and no limit on return | ||||
| Std trans.spacing | >=25mm-stepless adjustable | ||||
| Std long.spacing | >=50mm, and progressive increase by 50 | >=100mm, and increase by 100 | |||
| Std weld spots | 31 | 41 | 51 | 27 | 32 |
| Wire diameter(mm) | 3.0-6.0 | 3.0-6.0 | 3.0-6.0 | 5.0-12.0 | 5.0-12.0 |
| Weld speed(times/min | 50-70 | 40-60 | 40-60 | 40-60 | 40-60 |
| Trans material | Straight bar/rod | Straight bar | |||
| Long material | Straight bar/rod | ||||
| Control mode | PLC programming servo motor stepper | ||||
| Mesh diagonal error | <=2 | ||||
| Mesh overall error | <=2 | ||||
| Air pressure | >=0.7 | ||||
| Weld material | Cold drawn wire, galvanized wire, cold rolled ribbed steel | ||||
3. Application area
The wire diameter 4mm CNC spot welding machine can be widely used in the floor &wall reinforcing mesh in the building,reinforcing mesh in the tunnel,bridge and road.
4. Advantages
a. Both wires are pre-cut and finished mesh panel more nice.
b. Save manual work and time.
c. We can design the welded wire mesh machine as your requirement.
d. Longtitude wire fed automatically by raw material feeding device.Finished mesh pulled automatically by pneumatic device.More loading capacity for the cross wires.Save more manual labor and time.
e. Upper and down electrodes material is CuCrZr, best quality for electrical conductivity, abrasion-proof and long use life.
