Product Details:
|
| Product Name: | Automatic Wire Diameter 5mm CNC Spot Welding Machine | Feature: | Automatic Wire Feeding |
|---|---|---|---|
| Wire Diameter: | 3.0-8.0mm | The Control System: | CNC |
| Key Selling Points: | High Rigidity | Warranty Of Core Component: | 1 Year |
| Mesh Size: | 100-300mm | Panel Mesh Dimension: | 4000x2500mm |
| Welding Material: | Cold Roberts, Galvanized, Cold Rolled Ribbed Steel | Type Of Production: | Panel |
| High Light: | Dia 5mm CNC Spot Welding Machine,Huayang CNC Spot Welding Machine,CuCrZr Electrodes auto spot welder |
||
1. Product description

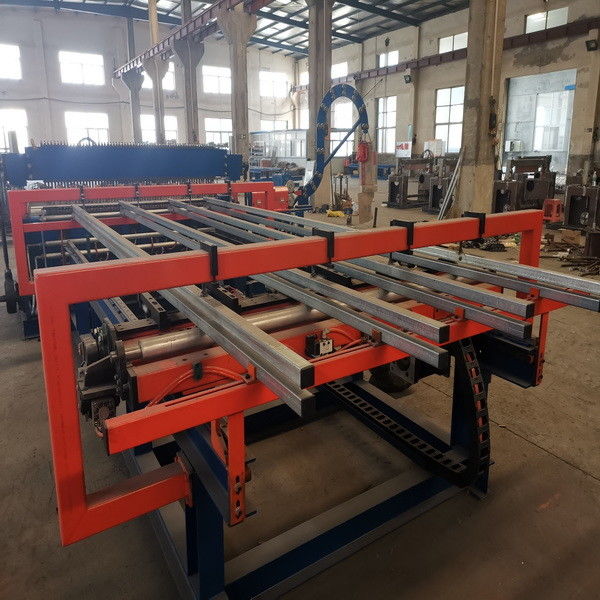

Automatic wire diameter 5mm CNC spot welding machine is used for making panel mesh. Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine etc.
2. Technical parameter
| Model | HY-DHW-1500 | HY-DHW-2000 | HY-DHW-2500 | HY-DHW-2800 | HY-DHW-3300 |
| Weld width(mm) | 1500 | 2000 | 2500 | 2800 | 3300 |
| Meshi trip(mm) | Single trip 3000 and no limit on return | ||||
| Std trans.spacing | >=25mm-stepless adjustable | ||||
| Std long.spacing | >=50mm, and progressive increase by 50 | >=100mm, and increase by 100 | |||
| Std weld spots | 31 | 41 | 51 | 27 | 32 |
| Wire diameter(mm) | 3.0-6.0 | 3.0-6.0 | 3.0-6.0 | 5.0-12.0 | 5.0-12.0 |
| Weld speed(times/min | 50-70 | 40-60 | 40-60 | 40-60 | 40-60 |
| Trans material | Straight bar/rod | Straight bar | |||
| Long material | Straight bar/rod | ||||
| Control mode | PLC programming servo motor stepper | ||||
| Mesh diagonal error | <=2 | ||||
| Mesh overall error | <=2 | ||||
| Air pressure | >=0.7 | ||||
| Weld material | Cold drawn wire, galvanized wire, cold rolled ribbed steel | ||||
3. Application area
The automatic wire diameter 5mm CNC spot welding machine can be used in coal mine roadway, concrete pavement, bridge deck, airport runway and construction.
4. Advantages
a. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.
b. The welding wire diameter is able to be made to orders. The range of our mesh welding machine is from 0.3mm to 12mm. Material can be stainless steel wire, galvanized wire, plain steel bar, cold rolled rebar, hot rolled rebar.
c. We can design the welded wire mesh machine as your requirement.
d. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.
e. Upper and down electrodes material is CuCrZr, best quality for electrical conductivity, abrasion-proof and long use life.
