Product Details:
|
| Product Name: | Automatic One Meter Width Fence Mesh Welding Machine | Warranty: | 1 Year |
|---|---|---|---|
| Usage: | Produce Wire Mesh | Electrodes: | Single Or Double Row |
| Aperture/pitch: | 1", 2", 3", 4" 25, 50, 75, 100mm | Certification: | CE |
| Advantage: | High Welding Speed | Nominal Voltage: | 380v 3 Phase Electric 50Hz |
| Weight Of Machine: | 1800(kg) | Application: | Construction Building Breeding Poultry Cage Fence |
| High Light: | 1m Width Fence Mesh Welding Machine,elastic tension Fence Mesh Welding Machine,Alterable Aperture weld mesh making machine |
||
1. Product description

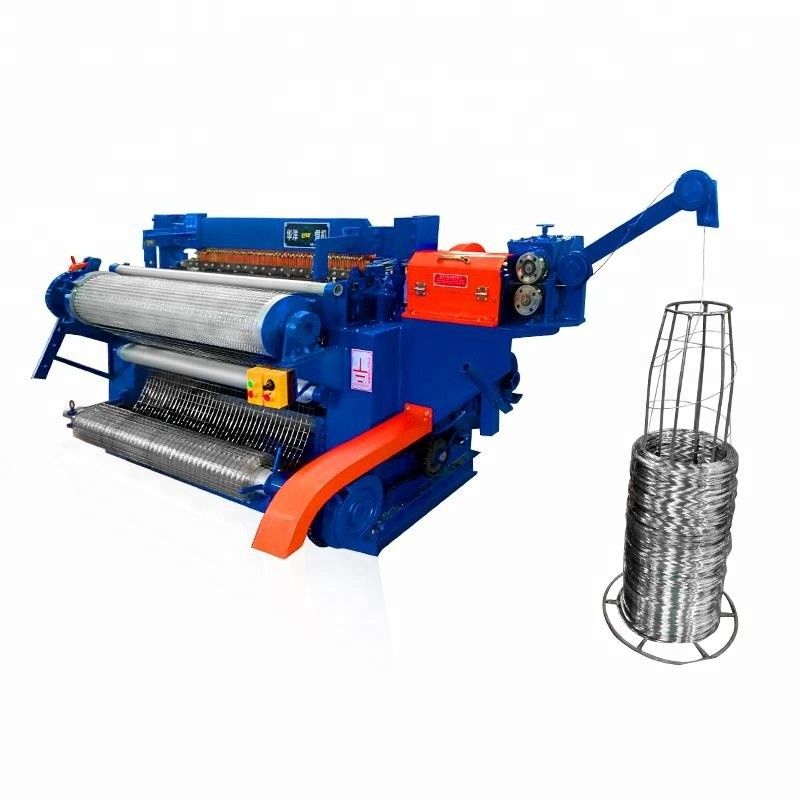

Automatic one meter width fence mesh welding machine is used for making wire mesh. Drawing mesh adopts the device with elastic tension link(which met the national patent and fixing the mesh,it is easy to regulate mesh hole and mesh size is rather accurate, welding aperture could also adjust randomly within the range. It is automatic to make mesh in pieces and in rolls.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1m | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic one meter width fence mesh welding machine is used to make rolled mesh. It is usded for building material shops, manufacturing plant, farms, home use,construction, poultry, highway, railway, bridge,mountain, safety protection of airport, ports, wharves.
4. Advantages
a. We can provide detailed installation videos, manuals, electrical schemes, layouts to help your machine installation.
b. Increased cost-effectiveness and reduced staffing requirements.
c. Inverter with adjustable frequency.
d.High speed and high productivity.
e. Both of line wire and cross wire are fed from wire coils automatically.
