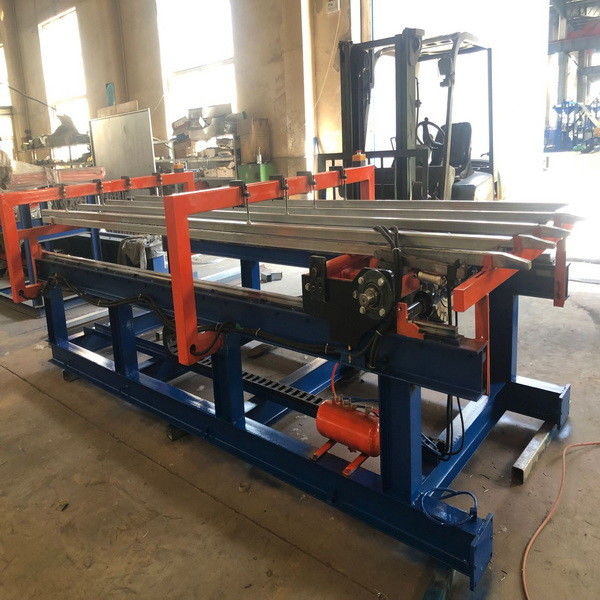

Galvanized Wire GI Wire Pneumatic Spot Welding Machine Synchronous Control

Galvanized Wire GI Wire Pneumatic Spot Welding Machine Synchronous Control
Galvanized Wire GI Wire Pneumatic Spot Welding Machine Synchronous Control

Large Image :  Galvanized Wire GI Wire Pneumatic Spot Welding Machine Synchronous Control

Product Details:
Place of Origin: China
Brand Name: Huayang
Certification: CE
Model Number: R-DHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month

Galvanized Wire GI Wire Pneumatic Spot Welding Machine Synchronous Control

Description
Product Name: Blue Galvanized Wire Pneumatic Spot Welding Machine Wire: SS Wrie, GI Wire, Steel Bar, Rebar
Feature: Automatic Wire Feeding Color Of Machine: As Your Request
Wire Diameter: 3.0-8.0mm Mesh Size: 100-300mm
Place Of Origin: Hebei, China Function: Fence Panel
Wire Diameter: 1-3mm Application: To Form Wire Mesh Sheets
High Light:

Galvanized Wire Pneumatic Spot Welding Machine

,

GI wire Pneumatic Spot Welding Machine

,

Synchronous Control cnc spot welder

Blue Galvanized Wire Pneumatic Spot Welding Machine

1. Product description

Blue galvanized wire pneumatic spot welding machine is used for making panel mesh. The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate. This automatic pulling device can be separated from the welded machine. This machine can weld continuous wire mesh sheets. After the wire mesh sheets enter into the automatic cutting machine, the cutting machine can cut the wire mesh sheet into fixed-size according to you need.


2. Technical parameter



Model HY-DHW-1500 HY-DHW-2000 HY-DHW-2500 HY-DHW-2800 HY-DHW-3300
Weld width(mm) 1500 2000 2500 2800 3300
Meshi trip(mm) Single trip 3000 and no limit on return
Std trans.spacing >=25mm-stepless adjustable
Std long.spacing >=50mm, and progressive increase by 50 >=100mm, and increase by 100
Std weld spots 31 41 51 27 32
Wire diameter(mm) 3.0-6.0 3.0-6.0 3.0-6.0 5.0-12.0 5.0-12.0
Weld speed(times/min 50-70 40-60 40-60 40-60 40-60
Trans material Straight bar/rod Straight bar
Long material Straight bar/rod
Control mode PLC programming servo motor stepper
Mesh diagonal error <=2
Mesh overall error <=2
Air pressure >=0.7
Weld material Cold drawn wire, galvanized wire, cold rolled ribbed steel


3. Application area

The blue galvanized wire pneumatic spot welding machine can be used in concrete reinforcement, cages (chickens, dogs, farms, etc…), wire mesh fences, panels for construction, racks, platforms.

4. Advantages

a. Using our patented cross wire fallen device, the device is compact, rational layout, reliable work.

b. The weft wire of wire mesh welding machine feeding from the multi hopper which capacity is more over ten times than the traditional hopper.

c. This wire mesh welding machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system. The input front-panel is touch screen , the operate is more intelligent and reasonable.

d. The new wire mesh welding machine added the bear wire net and carry equipment that makes the working more convenience .

e. The welding part of wire mesh welding machine is used the springiness input wire trunking that makes the welding copper use for long time.
